Description
BOSCH PCR9A5B90M Built In Gas Hob 90CM S.Steel Serie 6
Main Features
-

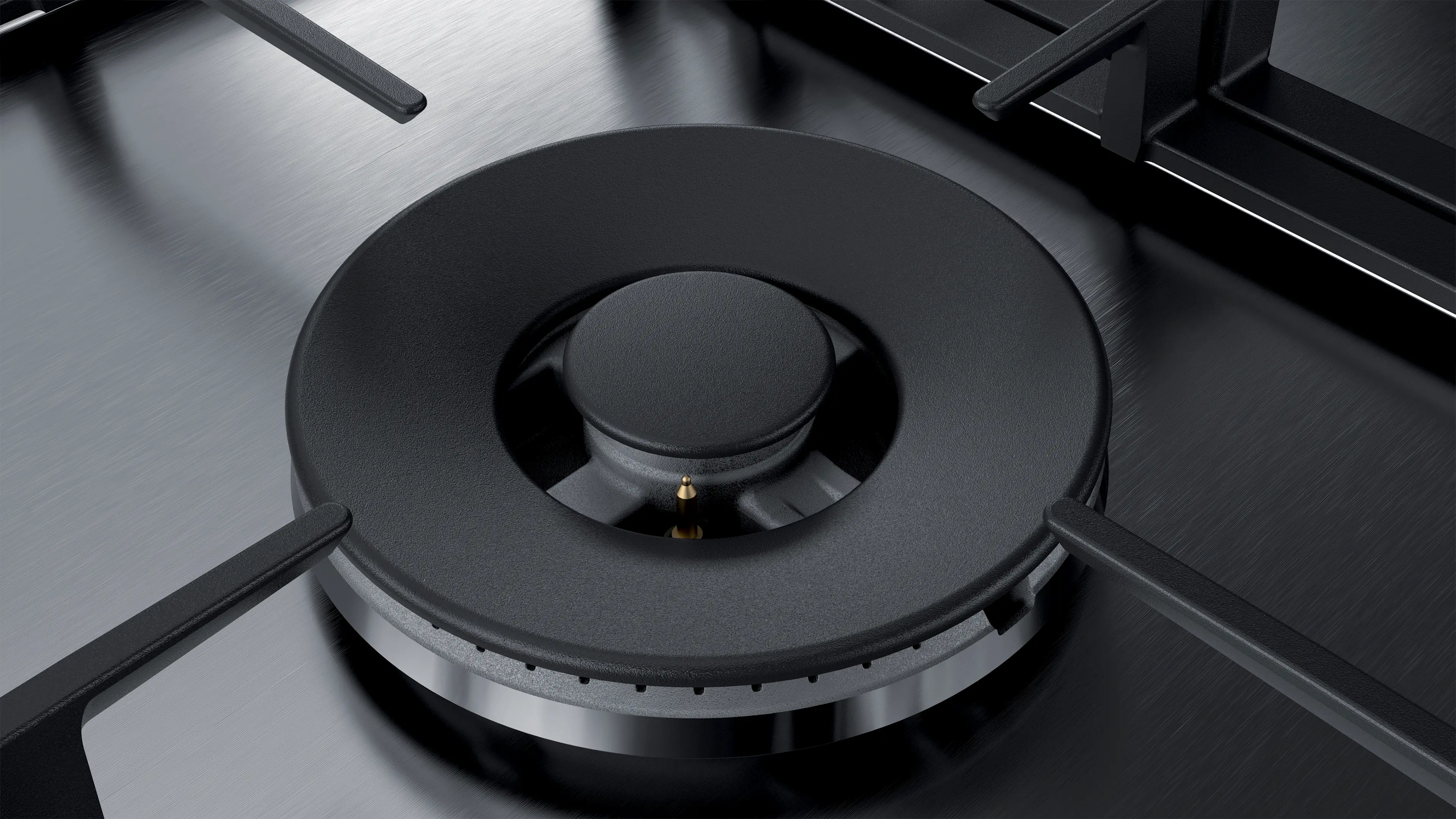

Gas hob (built‑in) with 5 burners including a dual‑wok burner (center) for very powerful cooking or gentler simmering.
-
FlameSelect: 9 predefined flame (heat) levels for precise control.
-
Surface made of stainless steel (sleek, easy to clean).
-
Cast‑iron pan supports (continuous design) with rubber feet.
-

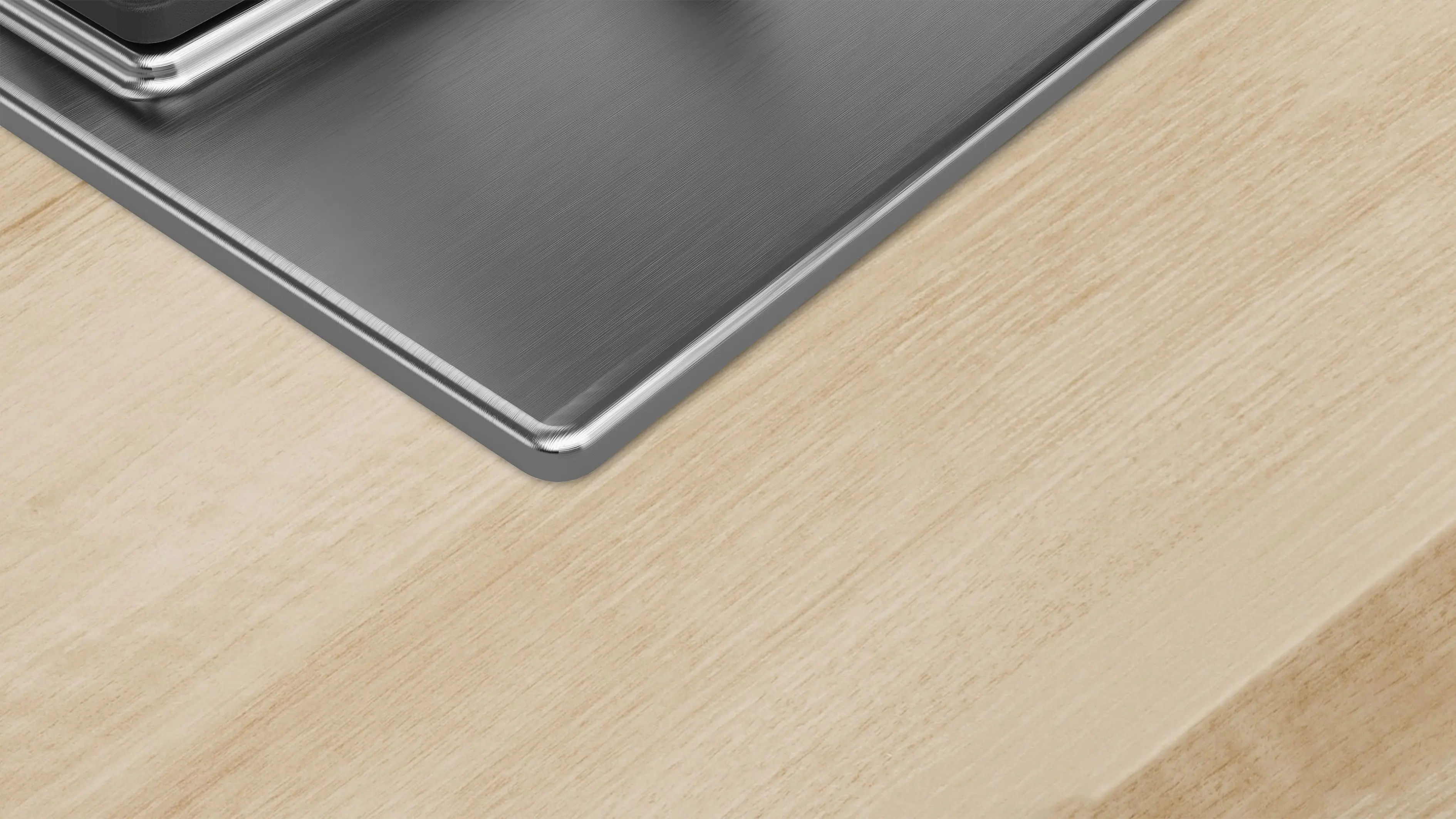

Frameless (borderless / low profile) design.
-
Sword‑style knobs (ergonomic control)
Full Specifications
| Specification | Detail |
|---|---|
| Model | Bosch PCR9A5B90M Series 6 |
| Type | Gas hob / Built‑in cooktop |
| Number of burners | 5 burners — includes standard, rapid/large, economy, and a dual‑wok (center) burner. |
| Gas types / Presets | • LPG (liquid gas) preset (G30/31) 28‑30 / 37 mbar • Natural gas (H/E/(L)) 20 (25) mbar (nozzle set included for alternate gas type) |
| Heat / Power of burners | Total gas input approx 12,500 W. ‑ The central dual‑wok burner can reach up to 5 kW (depending on gas type). ‑ One burner (rear‑right) ≈ 3.0 kW. ‑ Others: two standard ≈1.75 kW, small ≈1.0 kW. |

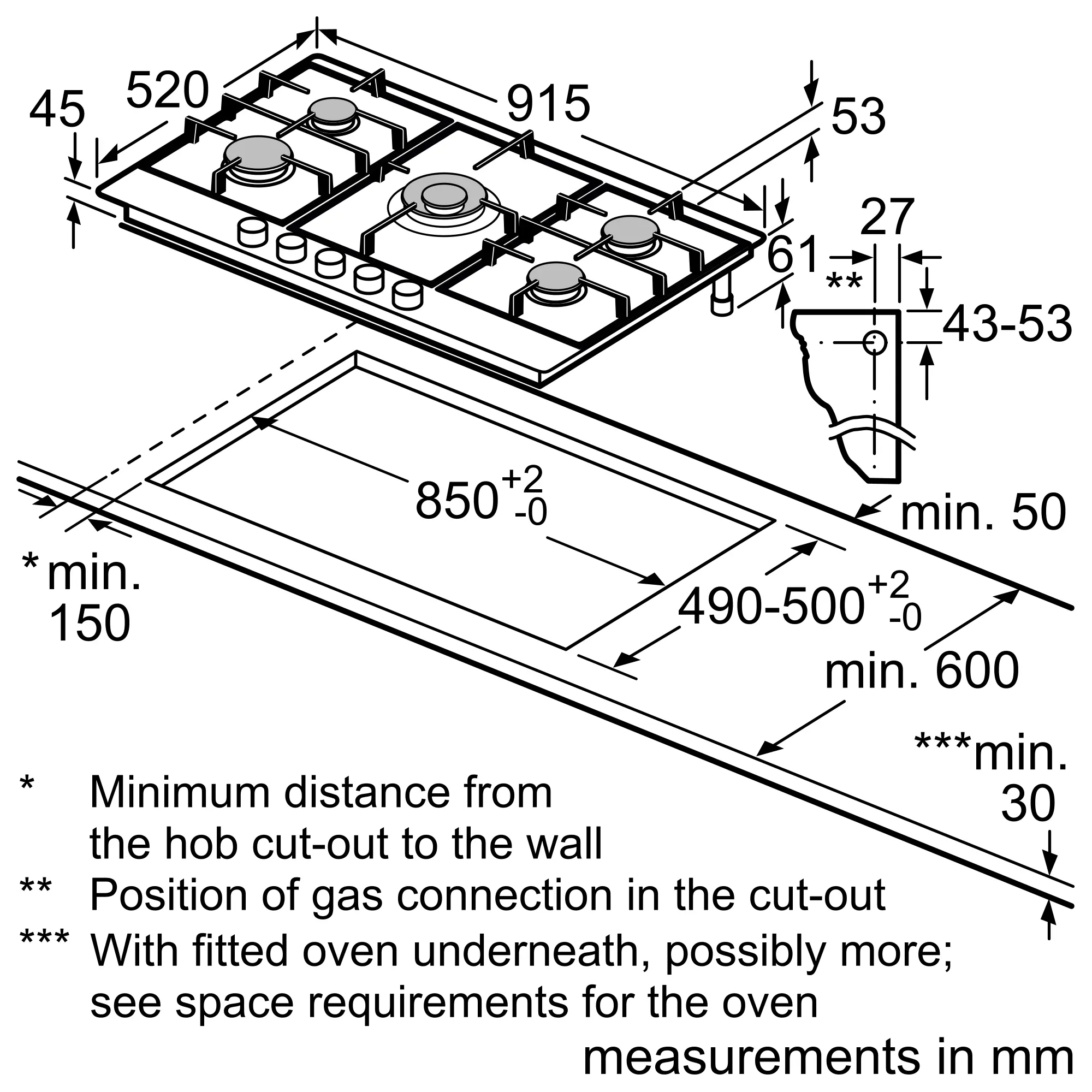

| Dimensions (Product / Overall) | Width: 915 mm; Depth: 520 mm; Height: ≈ 45‑53 mm depending on reference. |
| Cut‑out / installation dimensions | Roughly Width: 850‑852 mm; Depth: 490‑502 mm; Height needed for installation ≈ 45 mm. |
| Weight | ~ 14.5‑18 kg depending on region/source. |
| Electrical connection | Very low (used only for ignition/licht‑elements). Rated around 1 W. Voltage 220‑240 V, 50‑60 Hz. |
| Surface & materials | Stainless steel top; continuous cast‑iron pan supports with rubber feet. Knobs "sword style". |
| Safety / Controls | ‑ Thermocouple/flame failure safety for burners. ‑ Automatic ignition via control knobs. |
| Other | Frameless design, easy‑to‑clean surface. |
