Whirlpool Gas Hob

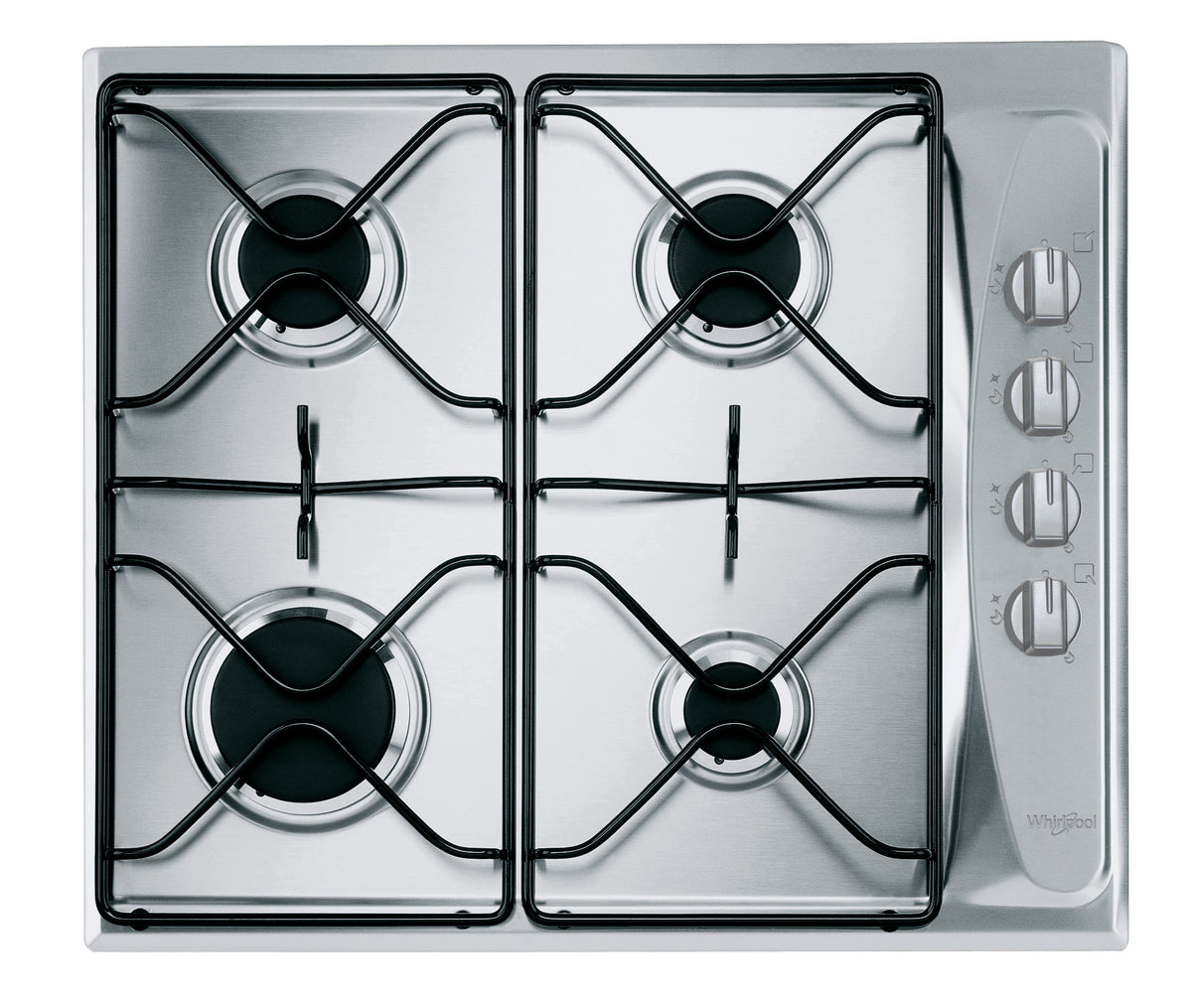

Whirlpool AKM 268/IX Gas Hob 60CM Stainless Steel
A 60CM built-in gas hob combining four burners, stainless steel construction and practical lateral mechanical controls for everyday cooking.
Product Overview
The Whirlpool AKM 268/IX is a built-in 60CM gas hob with four burners and a total gas connection rating of 7.3 kW. Its layout combines one 3.0 kW rapid burner, two 1.9 kW semirapid burners and one 1.0 kW auxiliary burner. Lateral knob controls, enamel pan supports and a safety device for each burner complete the practical stainless steel design.
Whirlpool Features & Cooking Control
Four gas burnersOne rapid, two semirapid and one auxiliary burner support flexible everyday pan placement.
3.0 kW rapid burnerThe rapid burner provides the highest output on the hob for larger cookware and faster heat-up.
Lateral controlsMechanical knob controls are positioned at the side of the hob for practical access and a clean cooking layout.
Knob ignitionIgnition is operated from the control knobs for straightforward burner operation.
Burner safety devicesAn electromagnetic safety device is specified for each burner.
Enamel pan supportsEnamel supports and two rectangular rod-iron grids provide stable cookware support.
Stainless steel designThe Inox stainless steel surface is designed to coordinate with modern built-in kitchen appliances.
Burner Configuration
- 1 × Rapid — 3000 W
- 2 × Semirapid — 1900 W each
- 1 × Auxiliary — 1000 W
- Total gas rating — 7300 W
Technical Specifications
| Model | AKM 268/IX |
|---|---|
| 12NC | 857126849700 |
| EAN / GTIN | 8003437808586 |
| Product group | Hob |
| Construction type | Built-in |
| Nominal size | 60CM |
| Product dimensions (H × W × D) | 41 × 580 × 500 mm |
| Niche dimensions (H × W × D) | 30 × 560 × 480 mm |
| Surface material | Inox / Stainless Steel |
| Main colour | Inox |
| Control type | Mechanical |
| Control setting | Knob |
| Control panel location | Lateral |
| Ignition type | Knob |
| Gas burners | 4 |
| Burner outputs | 3000 W rapid; 1900 W + 1900 W semirapid; 1000 W auxiliary |
| Pan supports | Enamel |
| Burner safety | Electromagnetic safety device for each burner |
| Gas type | G20 |
| Gas connection rating | 7300 W |
| Energy input | Gas |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Gas connection | Cilindric |
| Net weight | 8 kg |
