Description
Series 6 Gas Hob
Precise flame control on black tempered glass
FlameSelect gives the PPQ7A6B20 nine defined flame levels for precise, repeatable gas control, while five burners provide flexible cooking across a 75 cm black tempered-glass surface.
A central wok burner delivers up to 4.0 kW for high-heat cooking, supported by cast-iron pan supports and a standard or semi-flush built-in installation option.
Product Overview

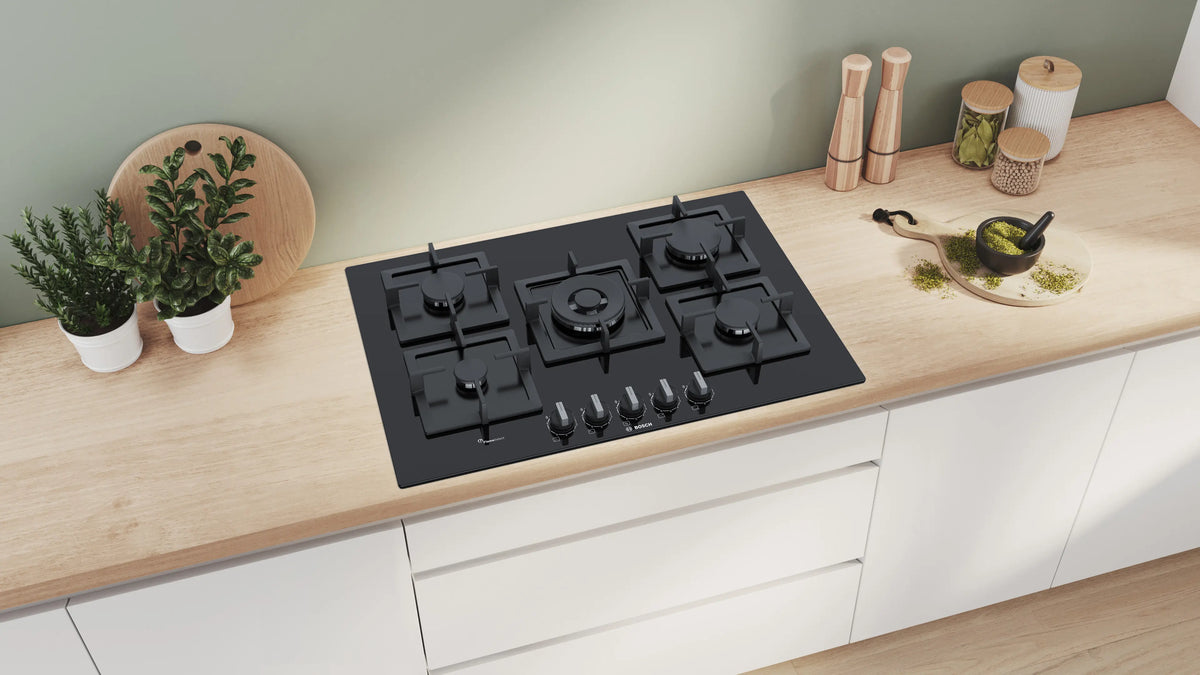

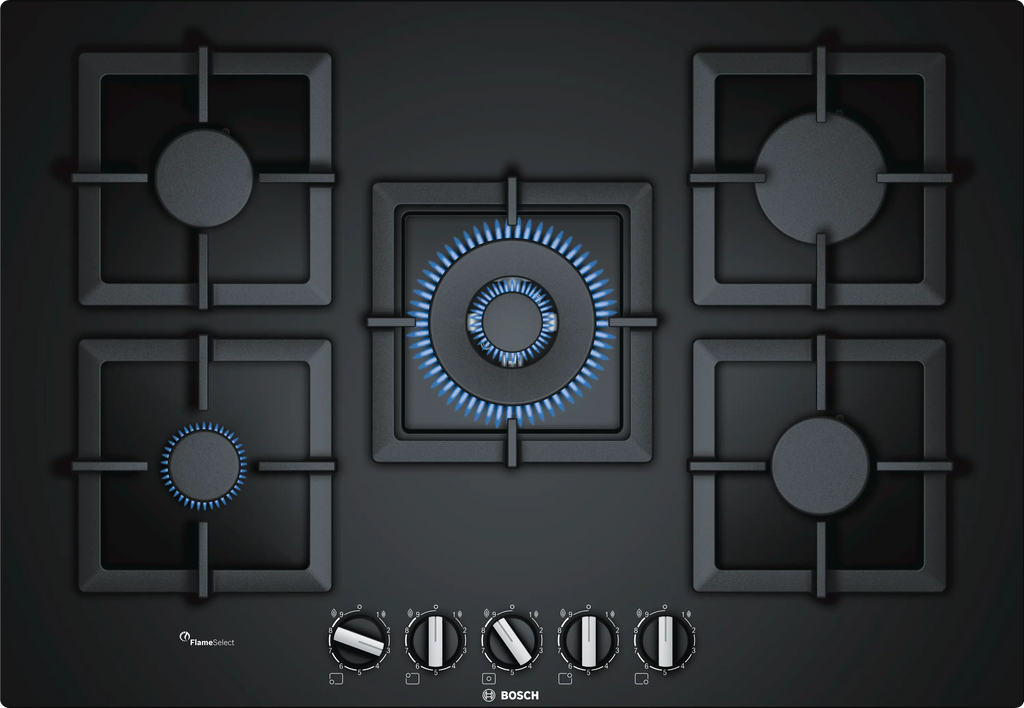

The PPQ7A6B20 brings five-burner gas cooking to a 75 cm black tempered-glass surface with FlameSelect for repeatable heat adjustment across nine levels.
The 4.0 kW wok burner adds high-output flexibility, while front-mounted controls, automatic ignition and cast-iron pan supports keep everyday cooking direct and practical.
Bosch Features
FlameSelect
Adjust the gas flame precisely through nine defined and repeatable power levels.

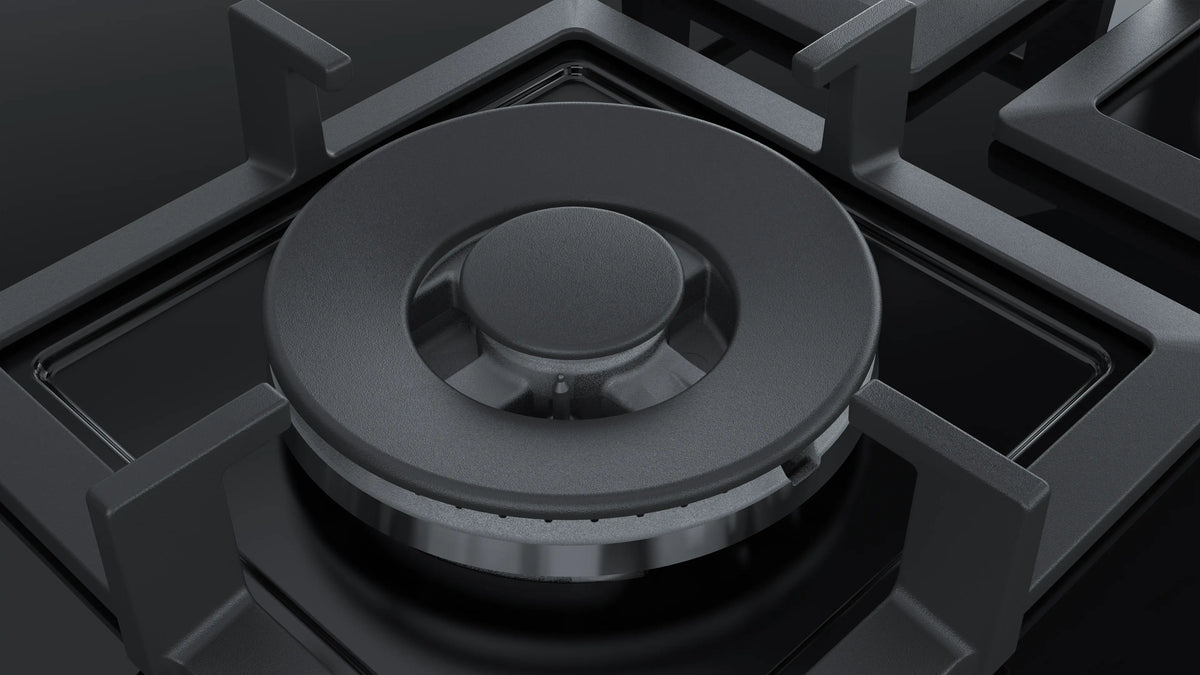

4.0 kW Wok Burner
The wok burner supports powerful high-heat cooking at up to 4.0 kW, depending on gas type.

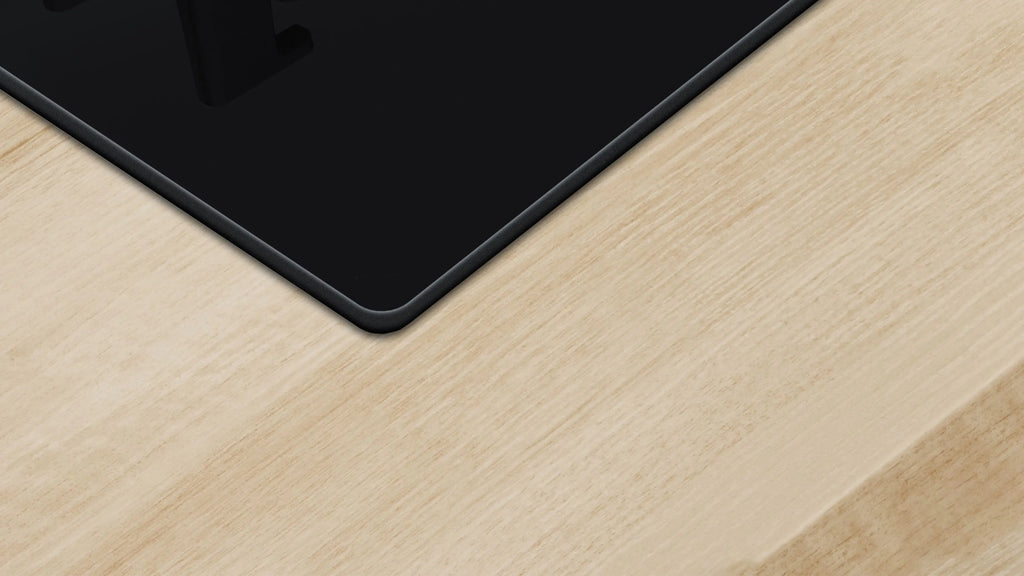

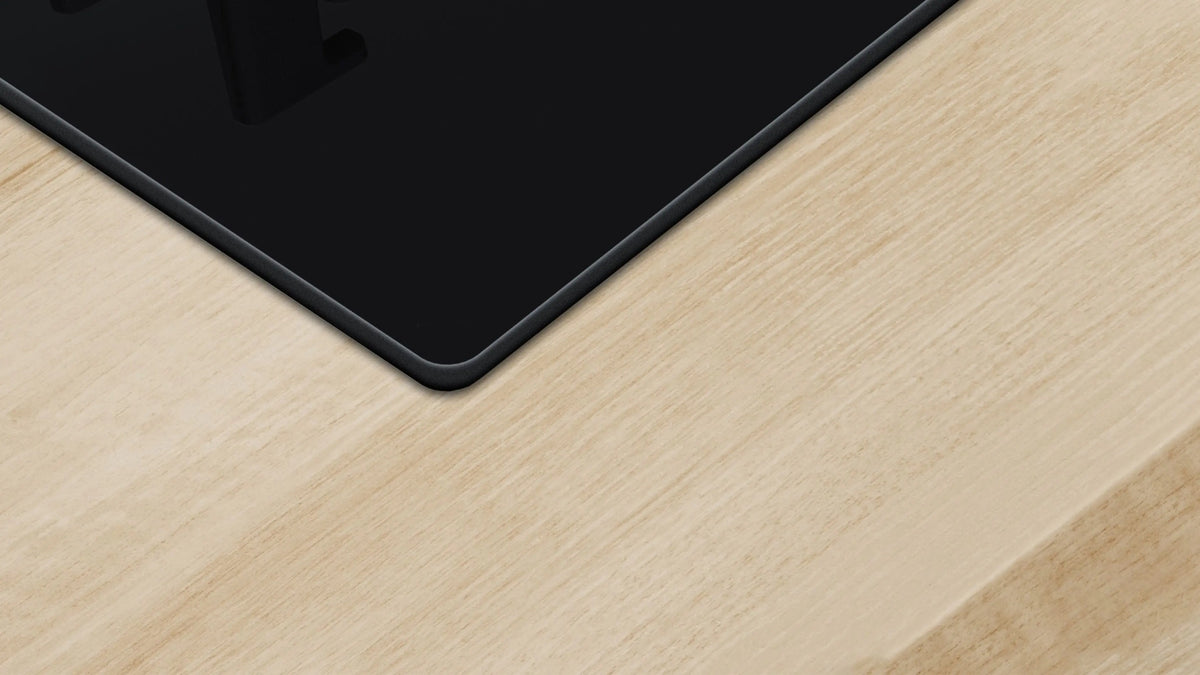

Tempered-Glass Surface
The black tempered-glass surface gives the hob a refined built-in appearance and a practical cooking area.

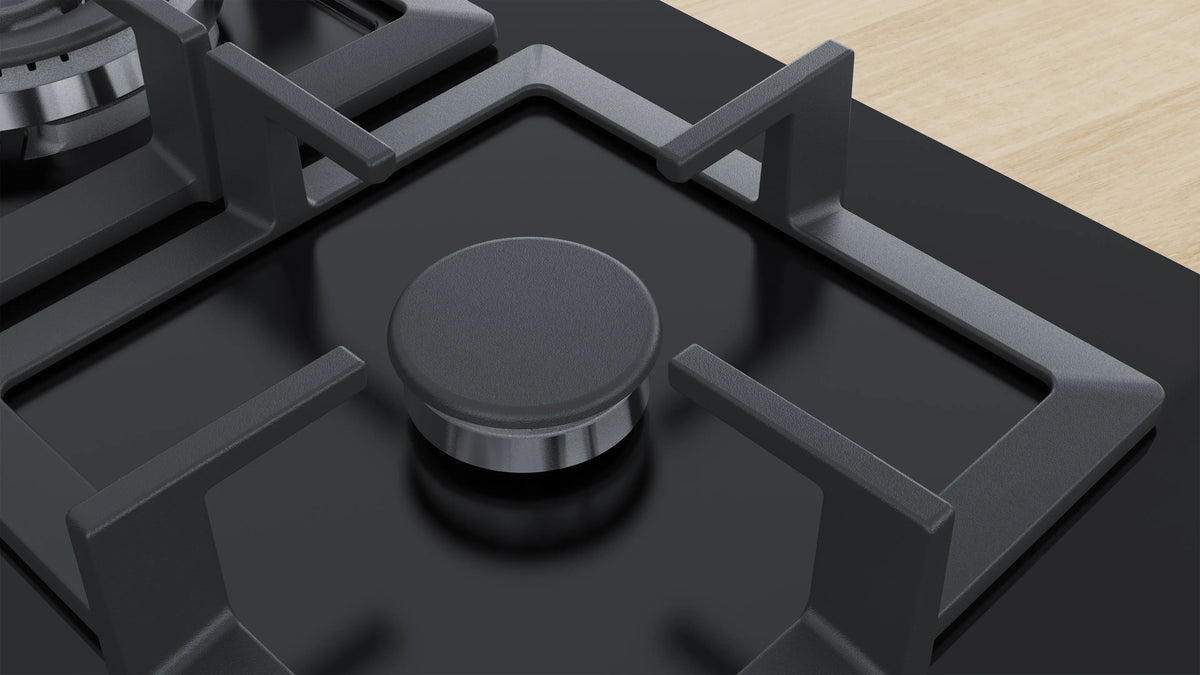

Cast-Iron Pan Supports
Single cast-iron pan supports with rubber feet provide firm cookware support and easier handling.
Safety Gas Cut-Off
A thermocouple safety system cuts off the gas supply if a burner flame goes out accidentally.

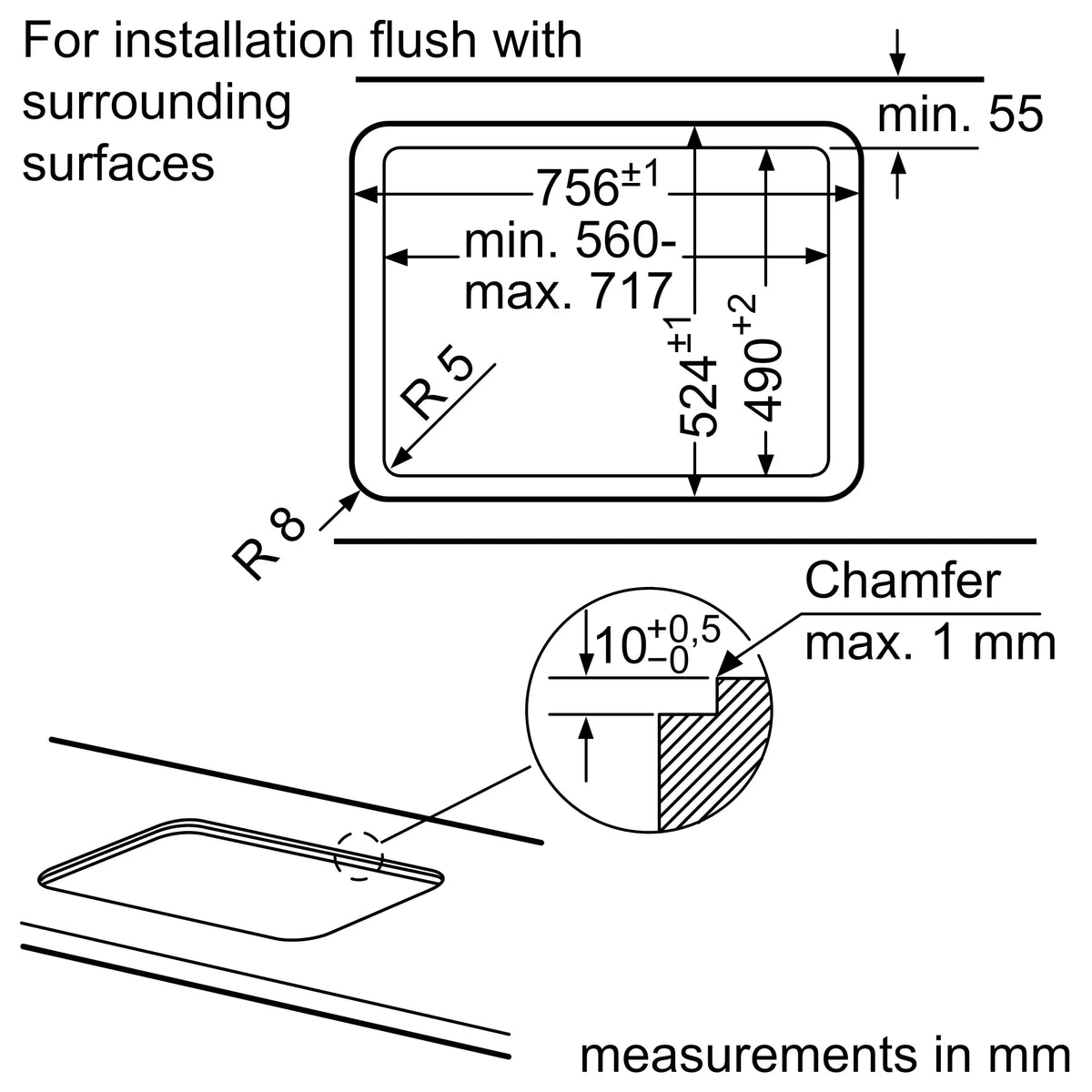

Standard or Semi-Flush Installation
The hob supports standard surface installation or a slightly raised semi-flush built-in fit.
Automatic Ignition
Burners ignite directly from the front control knobs for convenient everyday operation.
Biomethane Ready
The gas hob is designed to support renewable biomethane gas where compatible with the local gas supply.
Technical Specifications
| Model | PPQ7A6B20 |
|---|---|
| Series | Series 6 |
| Product type | Gas hob with integrated controls |
| Installation / format | Built-in, 75 cm; standard or semi-flush |
| Surface material | Black tempered glass |
| Cooking positions | 5 gas burners |
| Flame control | FlameSelect - 9 defined levels |
| Wok burner | Up to 4.0 kW |
| Economy burner | Up to 1.0 kW |
| Standard burners | 2 x up to 1.75 kW |
| High-output burner | Up to 3.0 kW |
| Pan supports | Single cast iron with rubber feet |

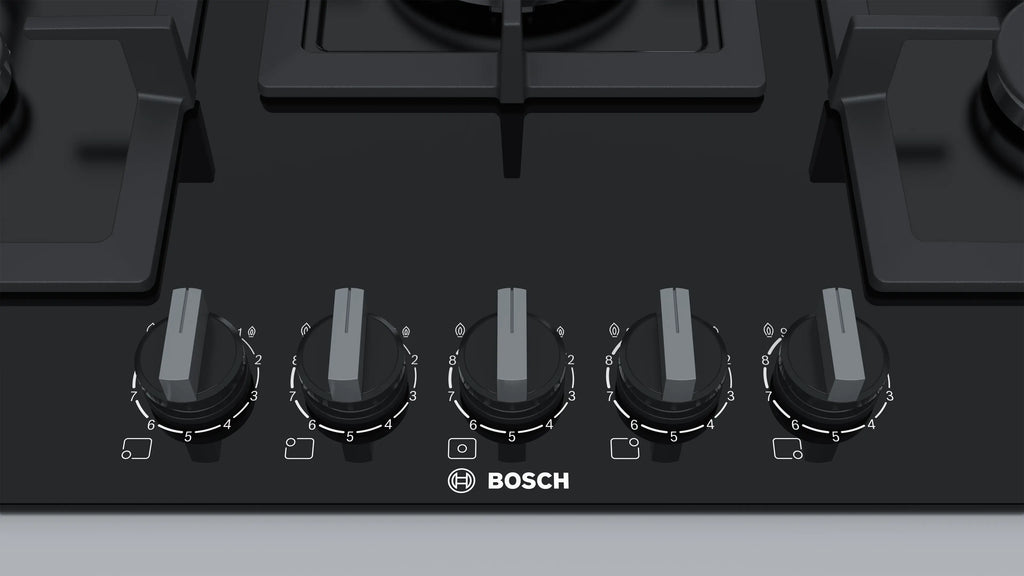

| Controls | Front-mounted sword knobs |
| Ignition | Automatic ignition via control knobs |
| Safety | Thermocouple safety gas cut-off |

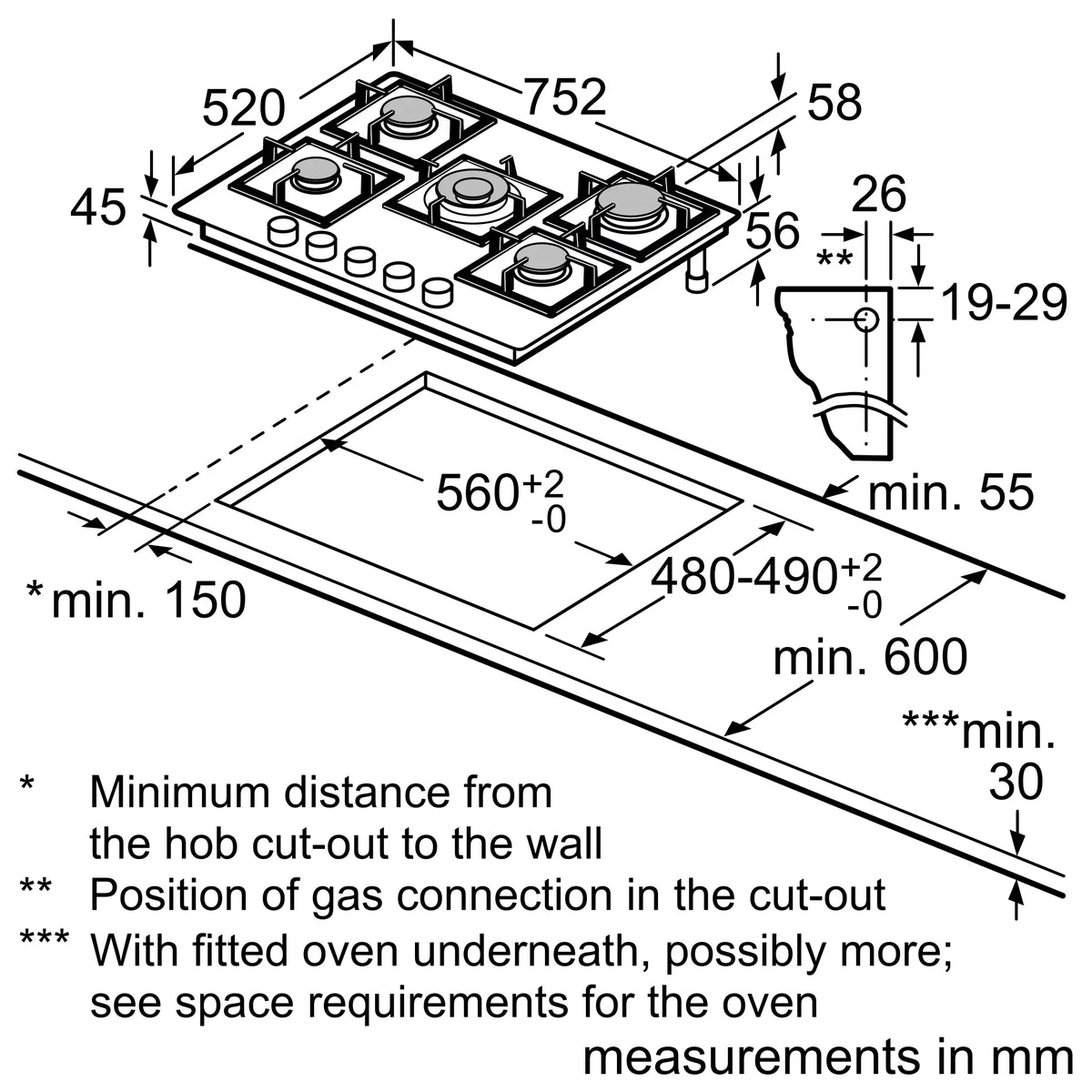

| Product dimensions (H x W x D) | 45 x 752 x 520 mm |
| Installation niche (H x W x D) | 45 x 560-562 x 480-492 mm |
| Gas connection rating | 11.5 kW |
| Gas type preset | Natural gas H/E/(L) 20 (25) mbar |
| Electrical supply | 220-240 V, 50/60 Hz, 100 cm cable |
What's in the Box
- Bosch PPQ7A6B20 built-in gas hob
- Cast-iron pan supports
- Original Bosch product documentation
