Serie 6 Gas hob
Powerful wok cooking with precise flame control
FlameSelect gives you nine defined flame levels for more repeatable control from gentle simmering to high-heat cooking.
The dual-wok multi-crown burner reaches up to 4.6 kW and lets you regulate the inner and outer flame rings across a wide power range.
Detachable metal knobs and dishwasher-suitable continuous cast-iron pan supports make routine cleaning more convenient.
Full Safety flame-failure protection helps stop unwanted gas flow if a flame goes out.
FlameSelect® - Precision at Every Level
Product Overview

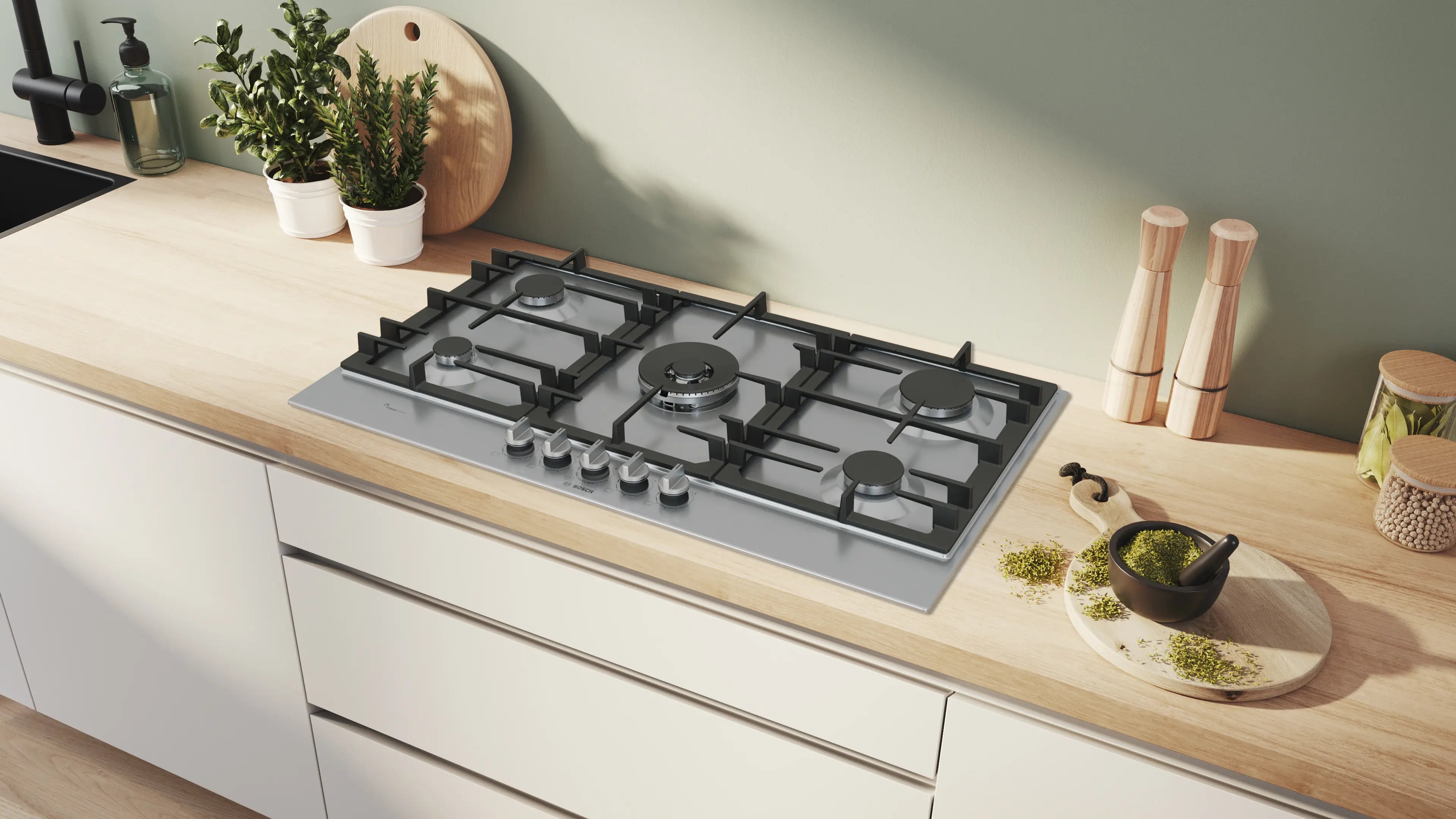

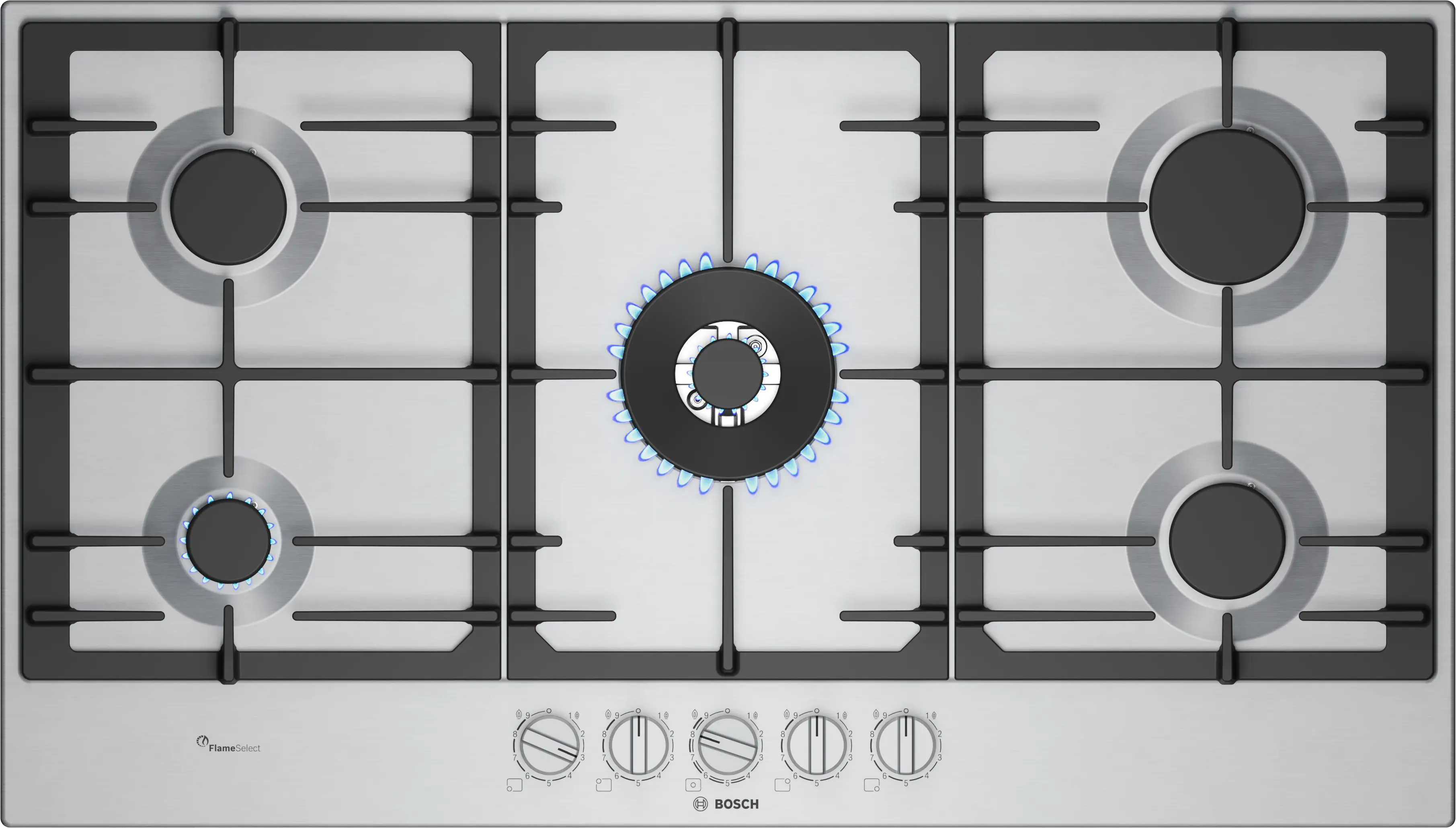

Designed for larger built-in kitchens, the PCR9A5I90M combines five gas burners across a 90 cm stainless-steel cooking surface.
The central dual-wok burner adds high-output flexibility, while FlameSelect supports consistent control for simmering, frying and boiling.
Front-mounted metal controls, automatic ignition and stable continuous cast-iron pan supports keep everyday operation direct and practical.
Bosch Features
FlameSelect
Precisely adjust the gas flame through nine defined and repeatable levels.
Dual-wok multi-crown burner
Use a wide power range up to 4.6 kW, with inner and outer flame rings that can be regulated across the burner's power levels.
Easy cleaning
Detachable knobs and dishwasher-suitable pan supports help simplify cleaning around the control area and cooking surface.
Dishwasher-suitable pan supports
Cast-iron pan supports can be cleaned in the dishwasher for easier maintenance.

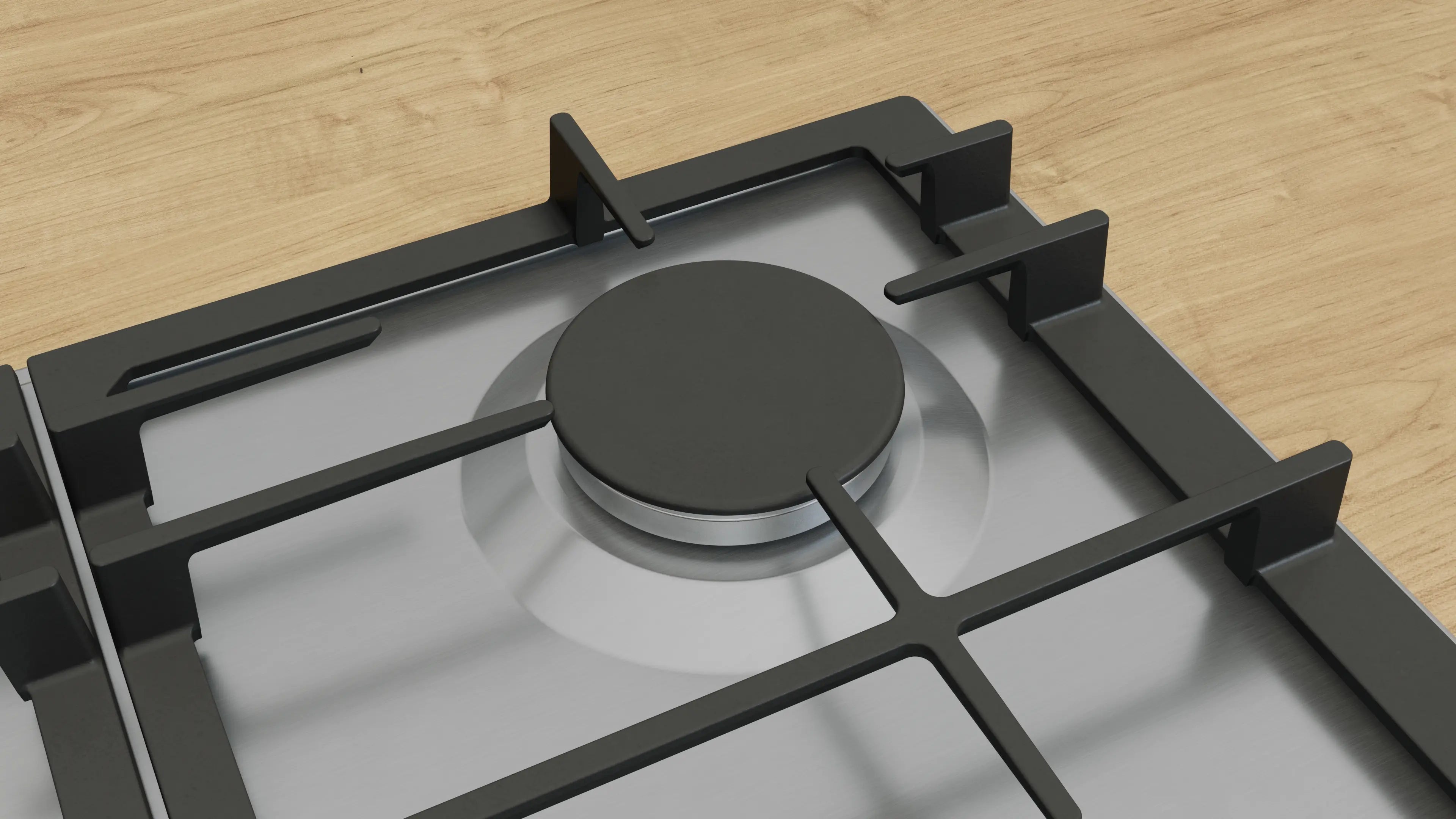

Continuous cast-iron pan supports
A continuous support surface provides high firmness and stability for cookware.

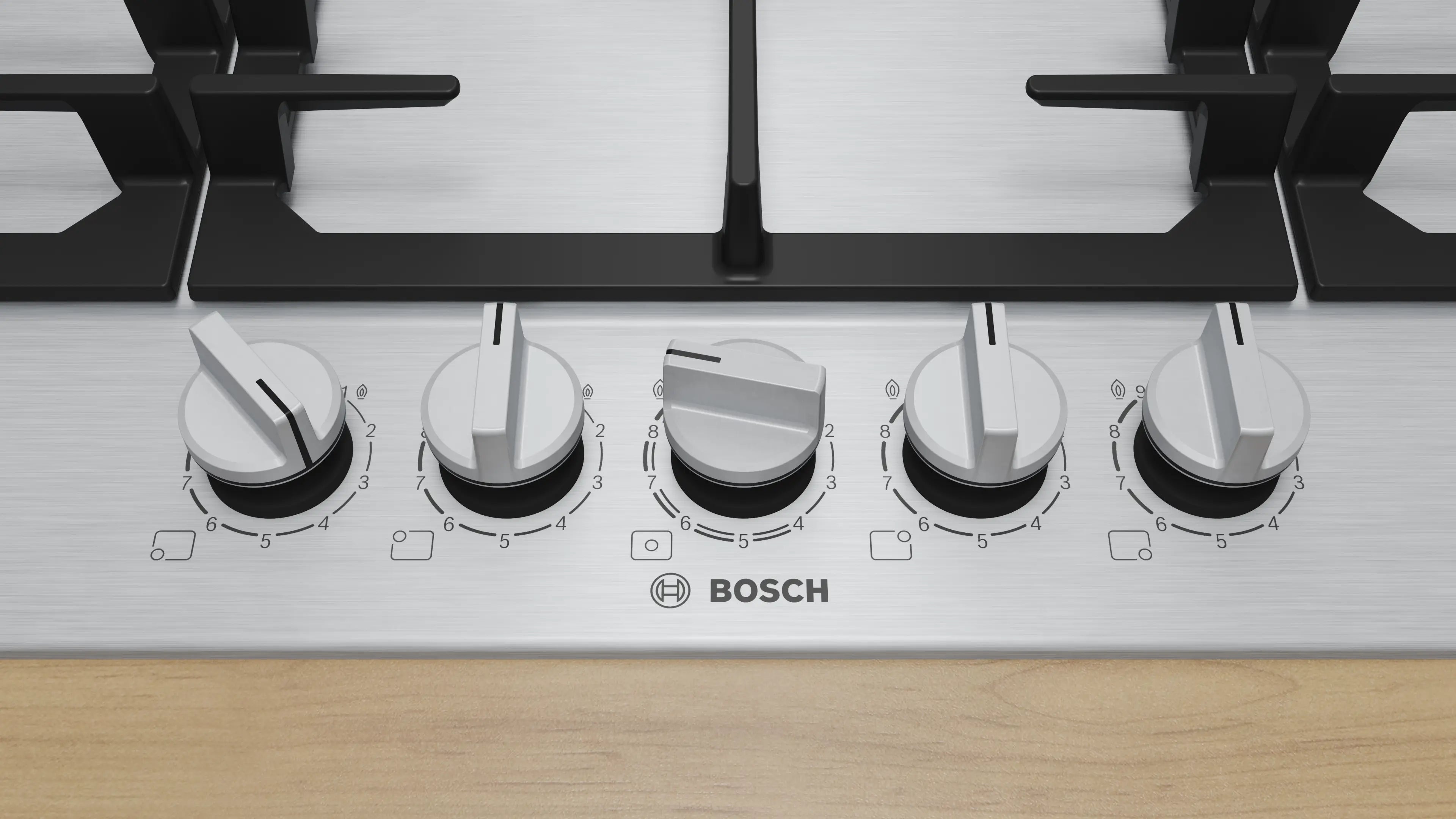

Removable metal knobs
The front metal control knobs can be removed to make cleaning between the controls easier.
Automatic ignition
Push and turn the control knob to ignite the selected burner.
Full Safety
Full Safety / Flame-failure protection / Automatic gas cut-off helps stop unwanted gas flow if the flame goes out.
Technical Specifications
| Model | PCR9A5I90M |
|---|---|
| Series | Series 6 |
| Product type | Gas hob with integrated controls |
| Installation / format | Built-in, 90 cm |
| Surface material | Stainless steel |
| Cooking positions | 5 gas burners |
| Flame control | FlameSelect - 9 defined levels |
| Dual-wok burner | Up to 4.6 kW |
| Economy burner | Up to 1.0 kW |
| Standard burners | 2 x up to 1.75 kW |
| Rapid burner | Up to 3.0 kW |
| Pan supports | Continuous cast iron with rubber feet |
| Control knobs | Front-mounted full-metal removable knobs |
| Ignition | Automatic ignition via control knobs |
| Safety | Full Safety / Flame-failure protection / Automatic gas cut-off |

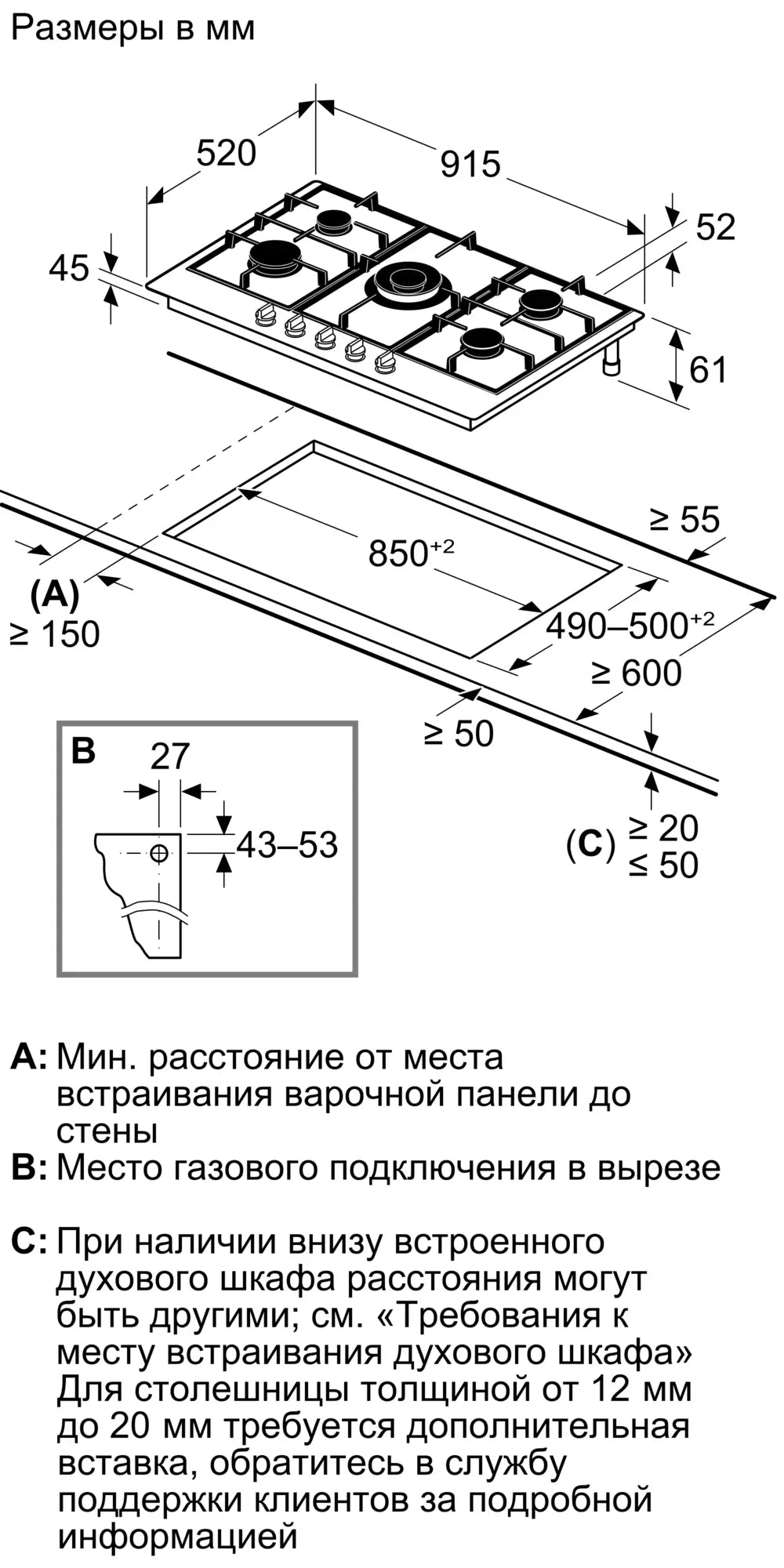

| Product dimensions (H x W x D) | 51.5 x 915 x 520 mm |
| Installation niche (H x W x D) | 45 x 850 x 490-500 mm |
| Minimum worktop thickness | 20 mm |
| Gas connection rating | 12.5 kW |
| Gas type preset | Liquid gas G30,31 28-30/37 mbar |
What's in the Box
- Built-in Bosch hob unit
- Product documentation
- Installation instructions supplied with the appliance
