Description

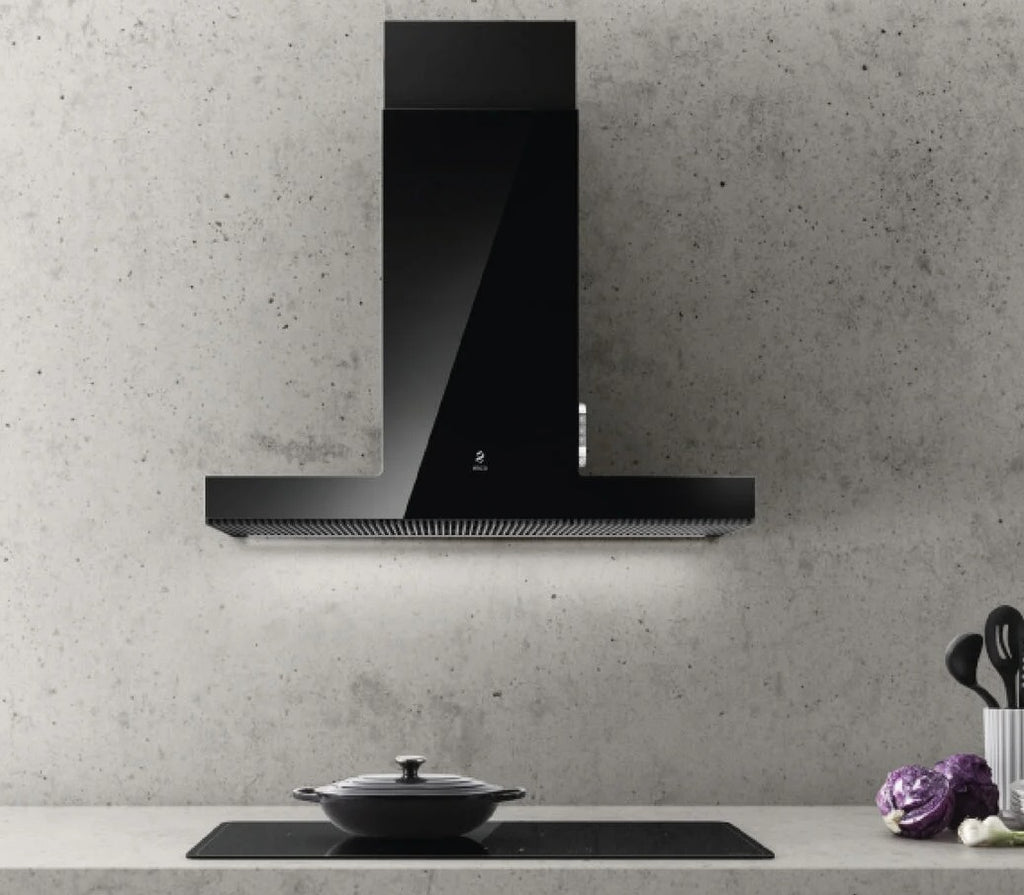

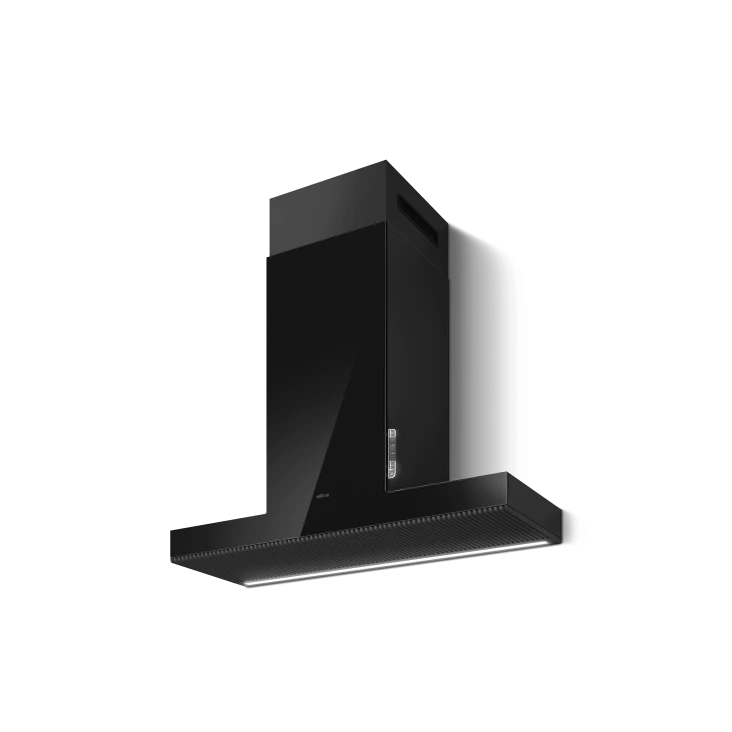

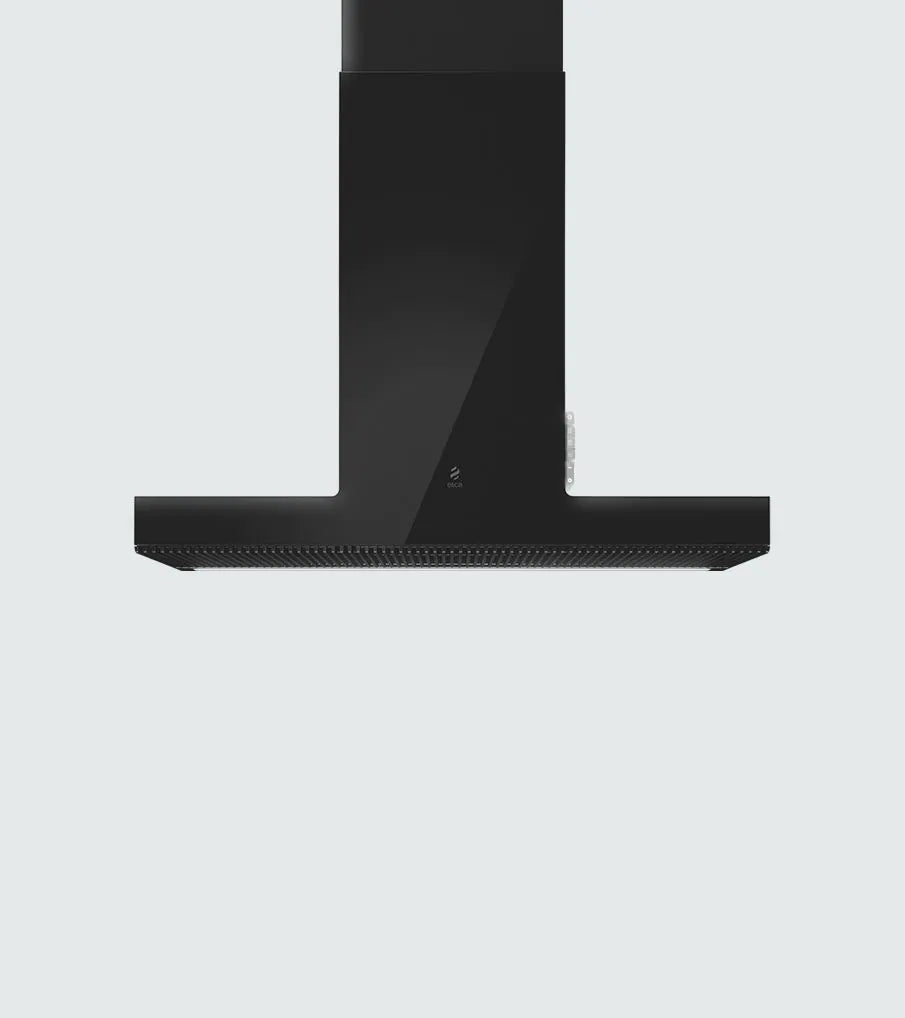

ELICA HAIKU BL/A/90 Wall Hood 90cm 1000m3/h Black Glass
Key Features & Full Specifications
Design & Aesthetic Features
-
Designer: Fabrizio Crisà, with a sleek, minimalist look that aligns seamlessly with cabinetry thanks to an adjustable-depth bracket system (SHIFT 3238) allowing millimetric alignment for both functional and aesthetic perfection
-
Materials: Available in finishes like black glass, white (Krion®), or stainless steel, incorporating cast‑iron effect aluminum grilles with a locking system for safety and easy dishwasher cleaning
Lighting
-
Equipped with a 7 W LED strip, approximately 3,500 K, providing around 250–253 lux brightness
Controls & Indicator System
-

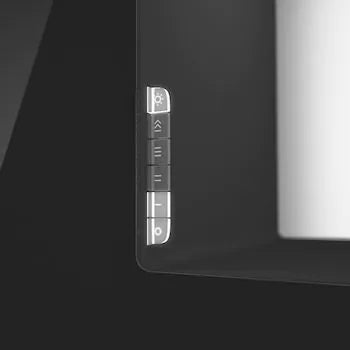

Control Panel: Electronic push-button control offering 3 standard speeds plus 2 boost/intensive speeds (“3S + 2B”)
-
Filter Alerts: Notifies when filters need cleaning or replacement (common across Haiku series)
Performance & Airflow
-
Airflow Range:
-
Min–Max: approx. 155 m³/h to 690 m³/h
-
Some listings note a broader general range of 300–1000 m³/h (possibly across multiple models or under test conditions)
-
-
Noise Levels: Typically 34 dB(A) at low speed up to 51 dB(A) at boost; some sources mention up to 63 dB(A) in specific conditions
Power Usage & Energy Efficiency
-
Power Absorption: Approx. 277 W
-
Energy Consumption: Around 50 kWh/year
-
Energy Efficiency: Rated Class A overall, with high marks for lighting and airflow efficiency

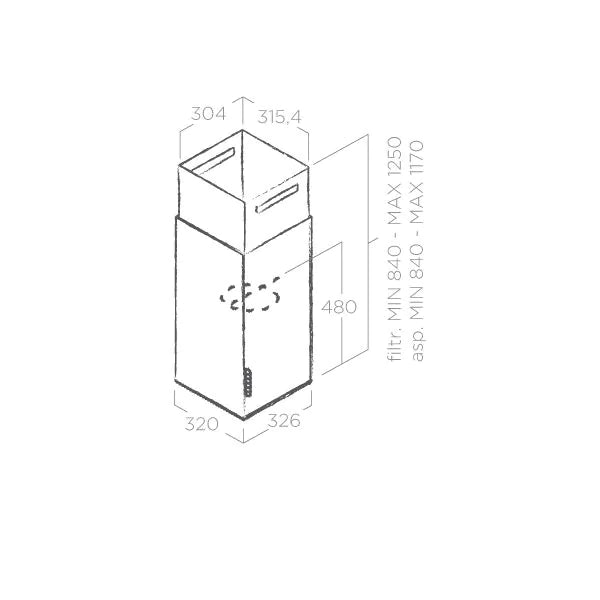

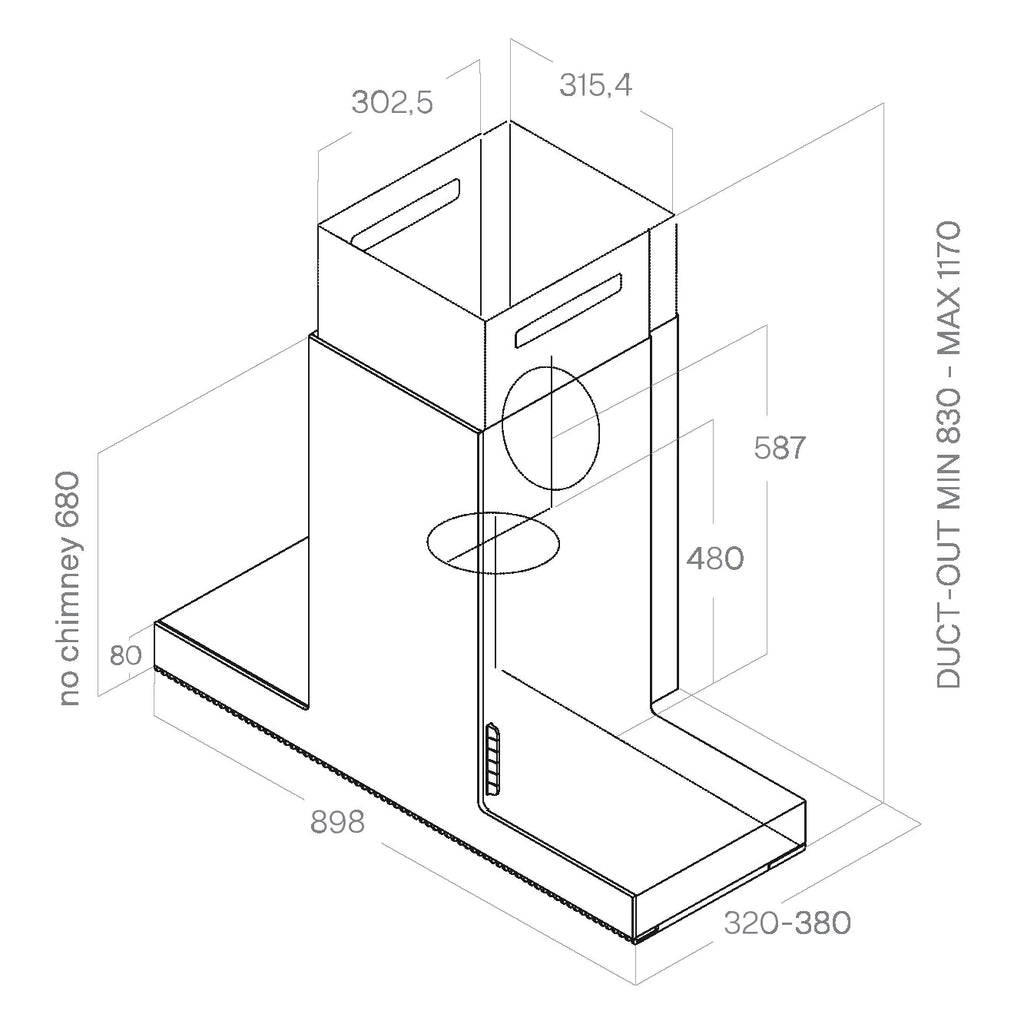

Installation & Dimensions
-
Width: Approx. 89.8–90 cm
-
Depth: Adjustable (32–38 cm range thanks to SHIFT 3238 system)
-
Ducting: Standard 150 mm outlet, with a 125 mm adapter included
-
Minimum Chimney Height Option: Can be installed without the upper chimney for a minimum height of 680 mm for a streamlined look
-
Recommended Clearance: Min. 50 cm above induction or radiant hobs; 65 cm for gas hobs
Filtration & Maintenance
-

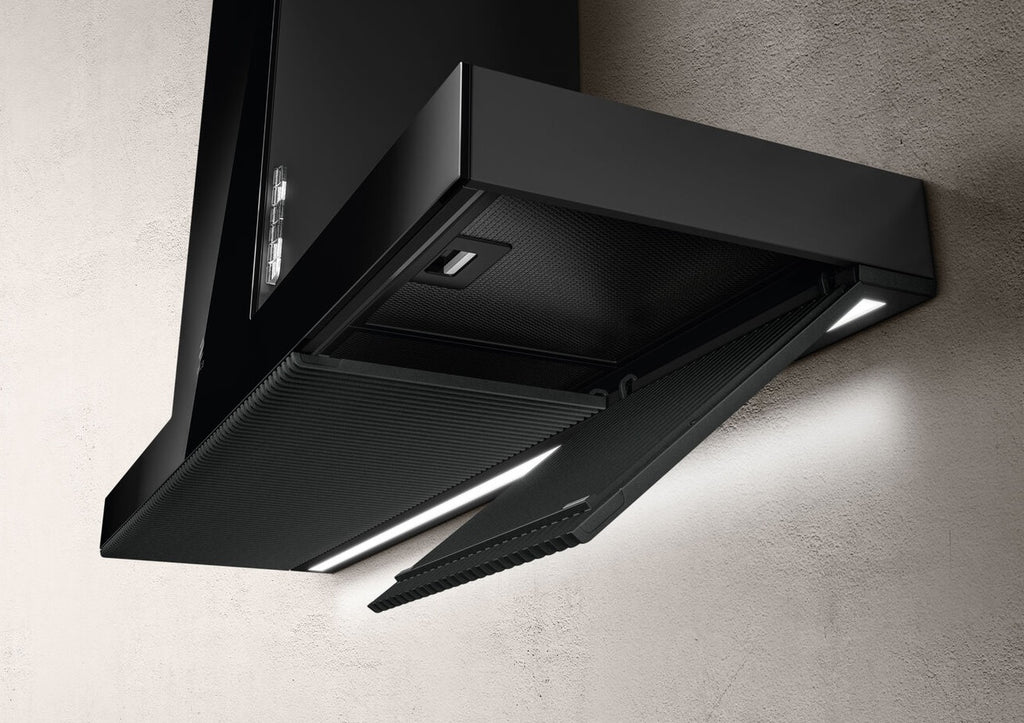

Grease Filter: Aluminum filter included, dishwasher-safe, secured with a locking mechanism
-
Odor Filters: Options include regenerable long-life filters (up to 3 years) or charcoal filters (e.g., model CFC0141529A) for recirculation mode
Quiet & Eco-Friendly Operation
-
Incorporates SilentPro / Comfort Silence technology, delivering strong extraction while keeping noise levels low—even on high—so conversations remain undisturbed
-
Built under EcoFair standards for energy savings and reduced environmental impact
Summary Table
| Attribute | Specification |
|---|---|
| Width | ~89.8–90 cm |
| Adjustable Depth | ~32–38 cm (via SHIFT 3238 system) |
| Power Absorption | ~277 W |
| Airflow (Min–Max / Boost) | ~155–690 m³/h (some sources 300–1000 m³/h) |
| Noise Level | ~34–51 dB(A) (up to 63 dB[A] noted) |
| Lighting | 7 W LED strip, ~3500 K, ~250 lux |
| Energy Efficiency | Class A overall; ~50 kWh/year |
| Controls | Electronic push-button (3 + 2 boost) |
| Filters | Aluminum grease; optional charcoal / long life |
| Duct Size | 150 mm (125 mm adapter included) |
| Clearances | Induction: ≥50 cm; Gas: ≥65 cm |
| Special Features | SilentPro, filter alerts, adjustable depth |
| Finishes Available | Black glass, Krion® white, stainless steel |
Overall Summary
The ELICA HAIKU BL/A/90 wall-mounted hood merges elegant design with flexible installation, strong yet quiet extraction, and eco-friendly performance. Its adjustable depth, filter management, and varied finish options make it ideal for modern kitchens that value both function and aesthetics.
