Description

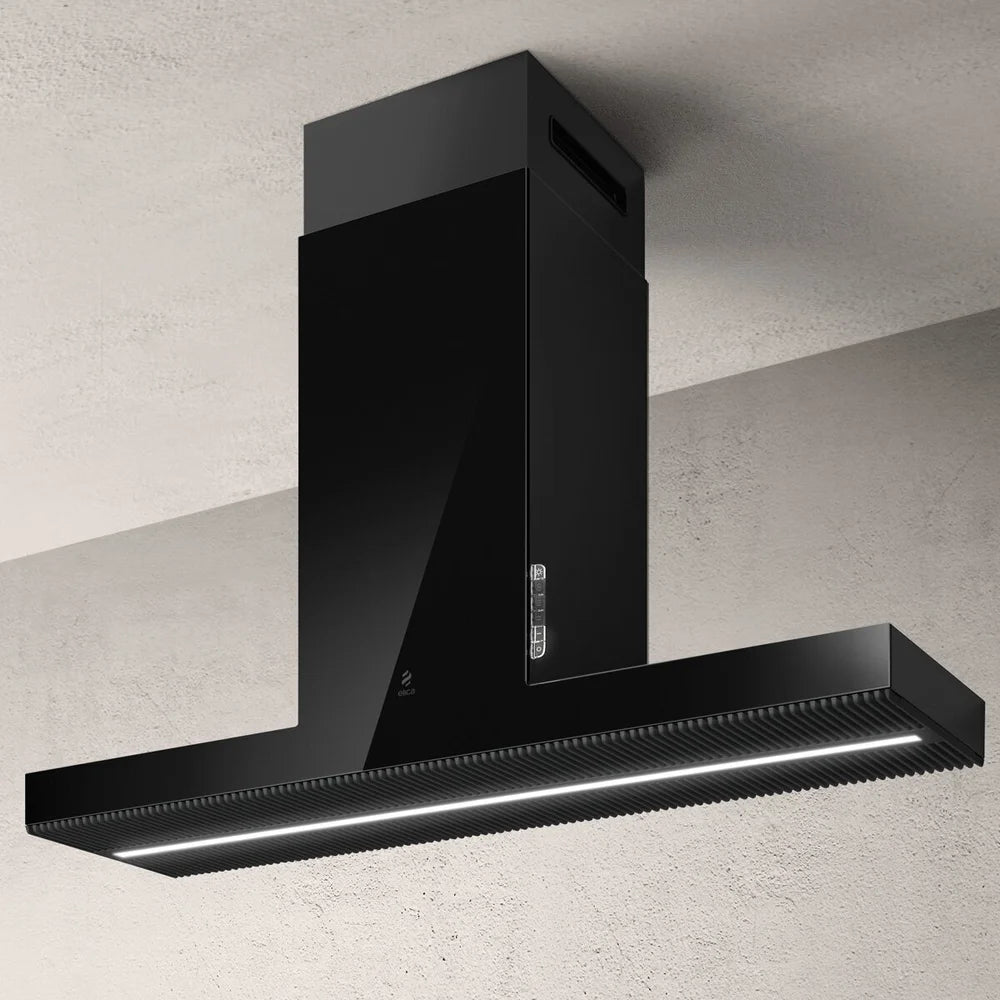

ELICA HAIKU ISLAND BL/A/12 Island Hood 120cm 1000m3/h Black Glass
Main Features & Full Specifications
Design & Aesthetics
-
Designer: Crafted by Fabrizio Crisà, this island hood features minimalist, seamless lines with the hood body and chimney perfectly aligned, creating a clean, monolithic silhouette. Available in stainless steel, black glass, white glass/Krion® and porcelain-like finishes
-
Materials: Includes special “Long Life” regenerable odor filters and stylish cast-iron effect aluminum grilles that lock into place for safety and ease of maintenance
Lighting
-
Integrated LED strip lighting delivering about 7 W, with color temperature around 3500 K, brightness approximately 365 lux
Controls & Indicators
-

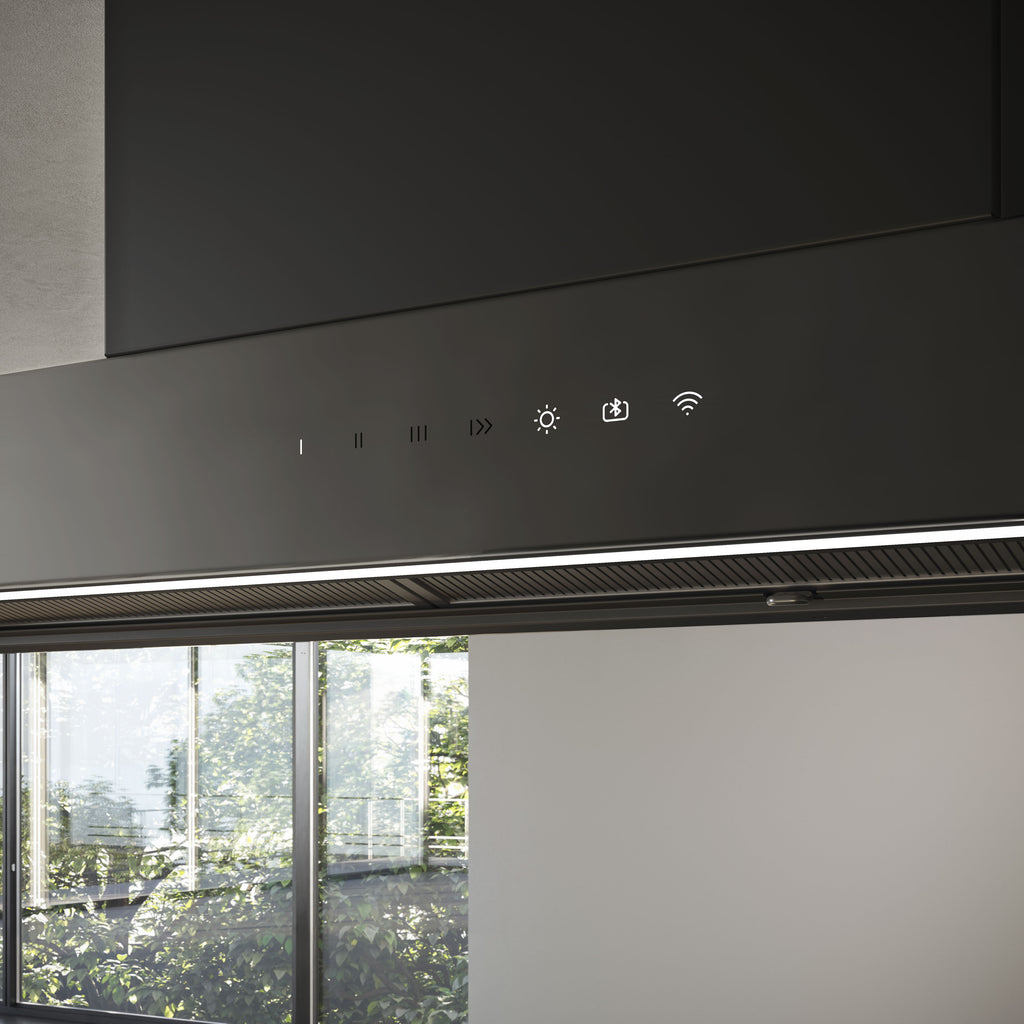

Control Panel: Electronic push-button panel (3 standard speeds + 2 intensive/boost speeds) labeled as "3S+2B"
-
Filter Indicator: Alerts when grease or odor filters need cleaning or replacement
Performance & Airflow
-
Airflow Capacity:
-
Noise Levels:
-
Range from 34 dB(A) (minimal setting) up to 51 dB(A) in intensive use
-
Power & Energy
-
Absorption Power: Around 277 W
-
Energy Efficiency: Rated Class A overall; lighting and dynamic airflow are also rated A, while grease filter efficiency is typically C
-
Estimated Annual Consumption: Approximately 50 kWh/year
Air Duct & Installation
-
Duct Diameter: 150 mm (6 in), with 125 mm adapter typically included
-
Recommended Clearance:
-
Electric/induction stove: at least 50 cm
-
Gas stove: at least 65 cm
-
-

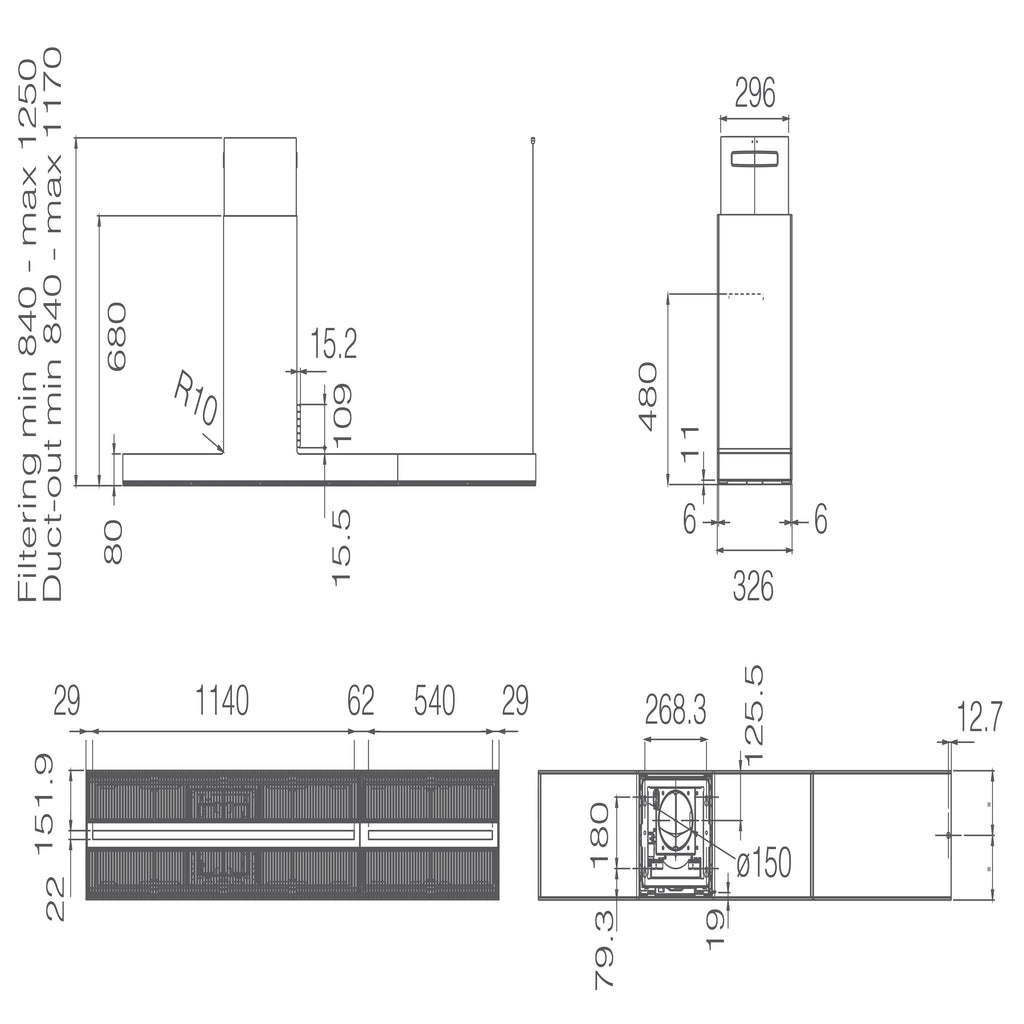

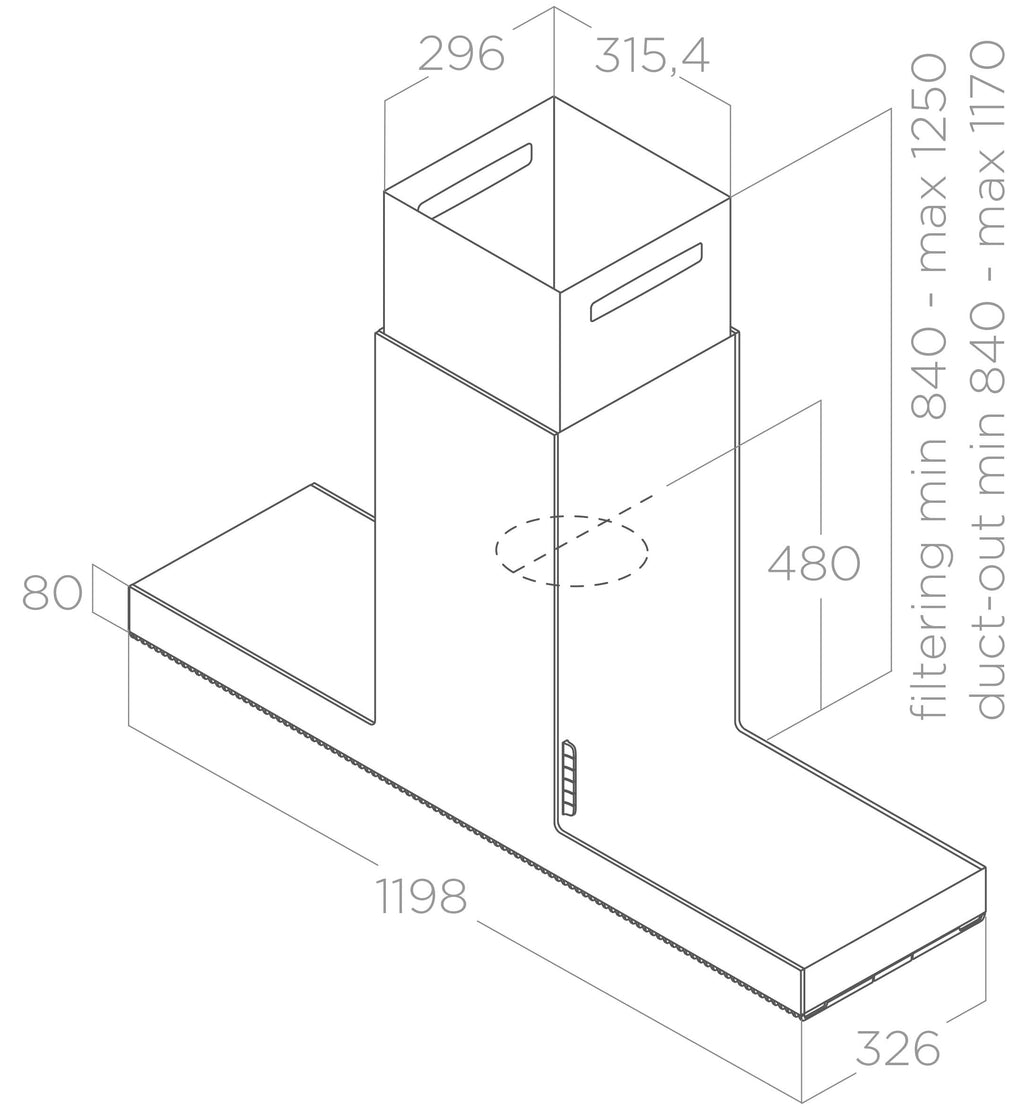

Dimensions:
-
Width: 120 cm
-
Depth: approx. 32 cm (some sources note 32.6 cm)
-
Chimney height varies; typical range: 84–117 cm
-
Filtration & Maintenance
-
Grease Filter: One aluminum grease filter included, dishwasher-safe. Equipped with a safety lock mechanism for secure removal and cleaning
-
Odor Filters:
-
Long Life regenerable filter: lasts up to 3 years, washable and can be refreshed in a dishwasher or oven (65 °C then 100 °C for drying)
-
Optional charcoal filters available (model CFC0141529A or CFC0141725A) for recirculating (filter) mode
-
Quiet Operation
-
Comfort Silence / SilentPro technologies deliver quiet performance, making conversation possible even at high extraction levels
Summary Table
| Attribute | Specification |
|---|---|
| Width | 120 cm |
| Depth | ~32 cm |
| Chimney Height | ~84–117 cm |
| Power Absorption | ~277 W |
| Airflow (Normal/Boost) | ~375 / ~690 m³/h |
| Noise Level | ~34–51 dB(A) |
| Lighting | 1× 7 W LED strip, 3500 K, ~365 lux |
| Energy Class | A overall; lighting A; grease filter C |
| Duct Size | 150 mm (adapter to 125 mm) |
| Controls | 3 speeds + 2 boost (3S+2B) |
| Filters | Aluminum grease + regenerable/charcoal odor filters |
| Special Features | Comfort Silence, filter alerts, aesthetic materials |
Overall Summary
The Elica Haiku Island 120 cm (BL/A/120) combines elegant design with strong performance and efficient, quiet operation. It fits well in modern open-plan kitchens and balances minimalist aesthetics, robust airflow, and easy maintenance.
