Description

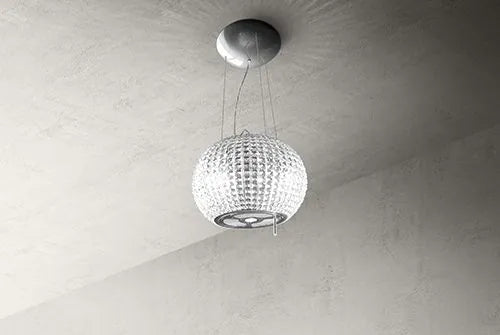

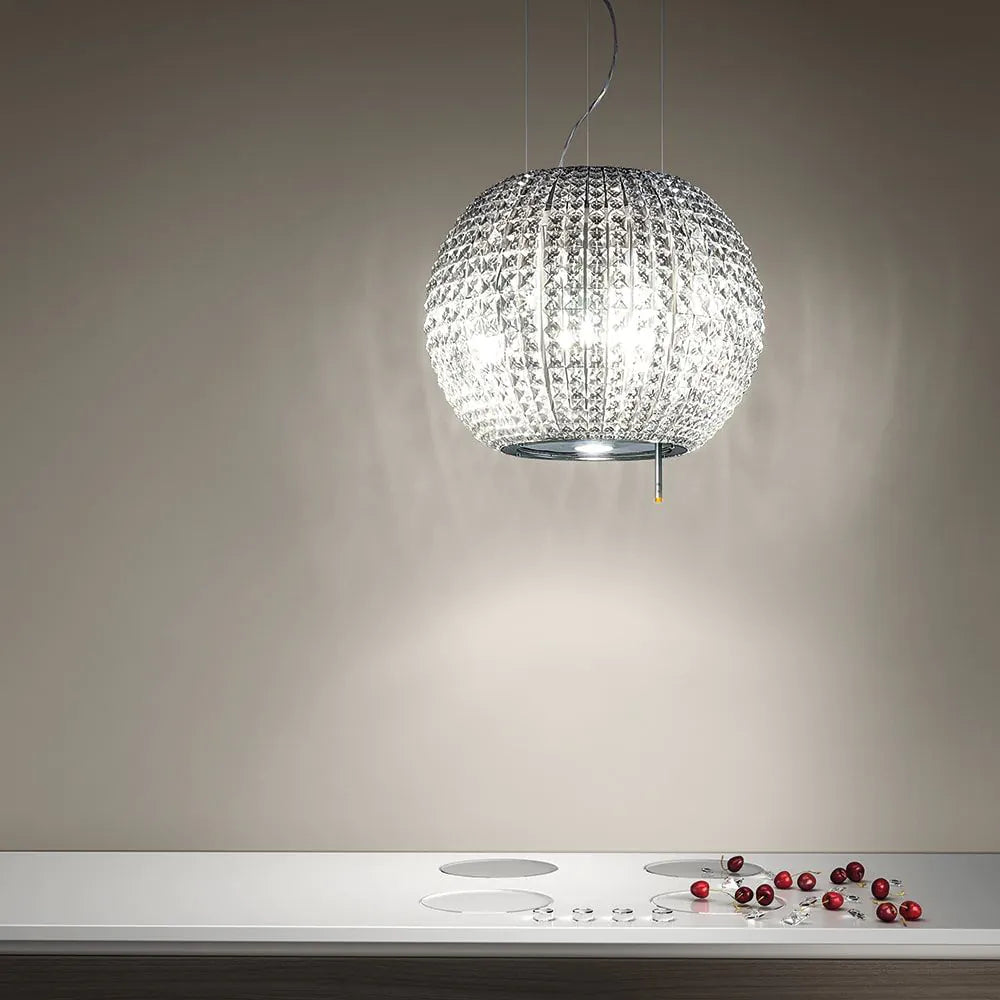

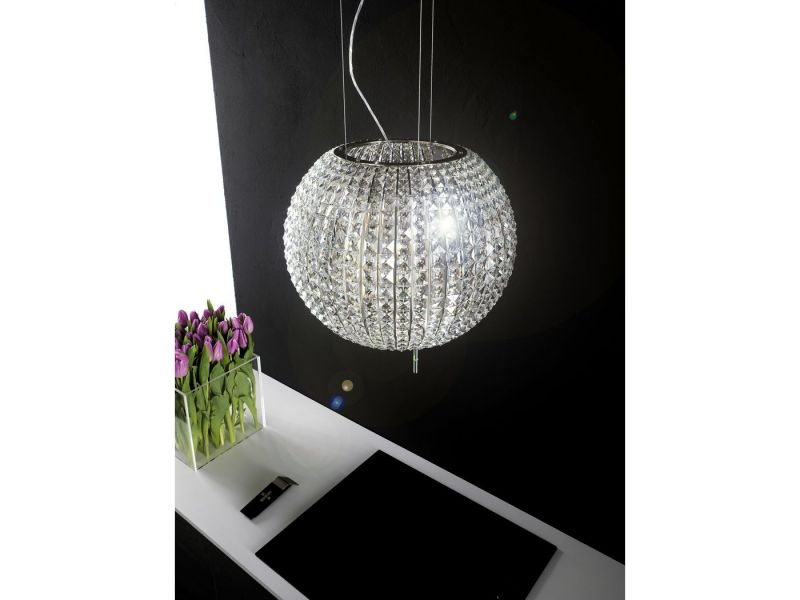

A statement island hood with Magic Wand controls, ambient Halo light and efficient recirculating performance — elegant by day, spectacular by night.
Key Features
Made in Italy
Ø 47 cm island
Recirculating (filtering)
3 speeds + Boost
Magic Wand controls
LED + Halo light
Energy class B

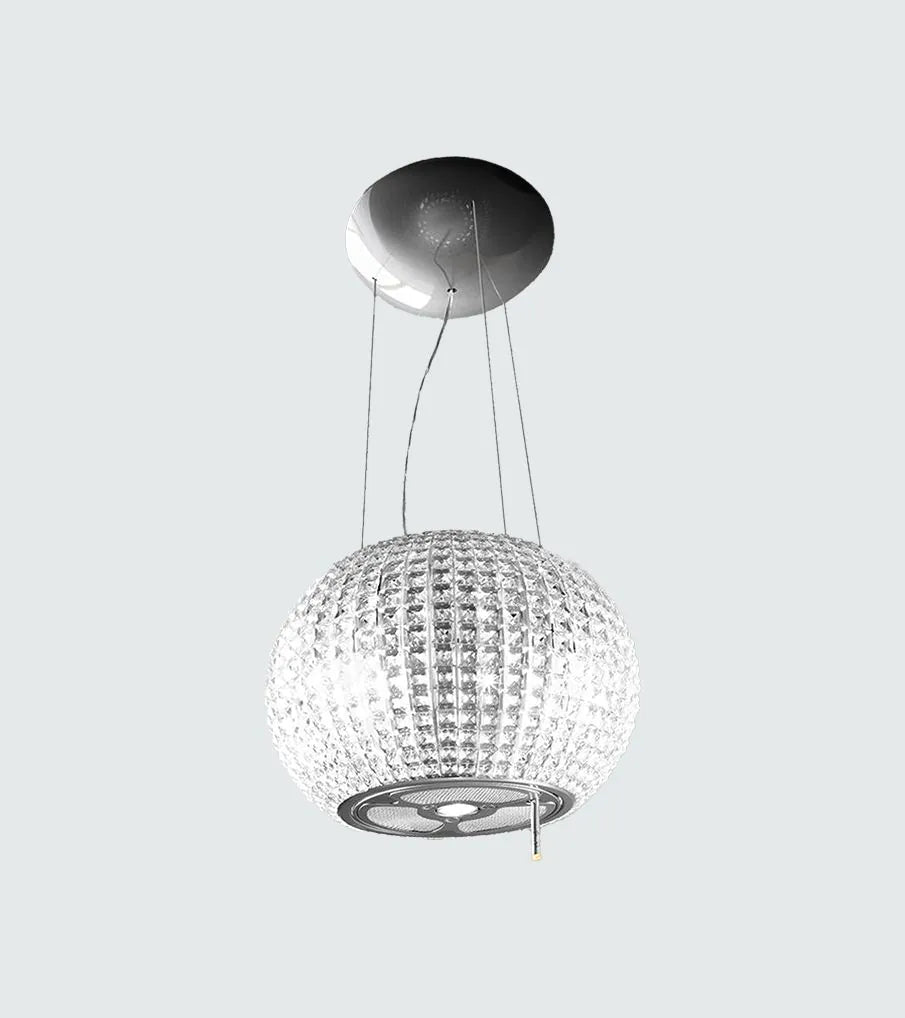

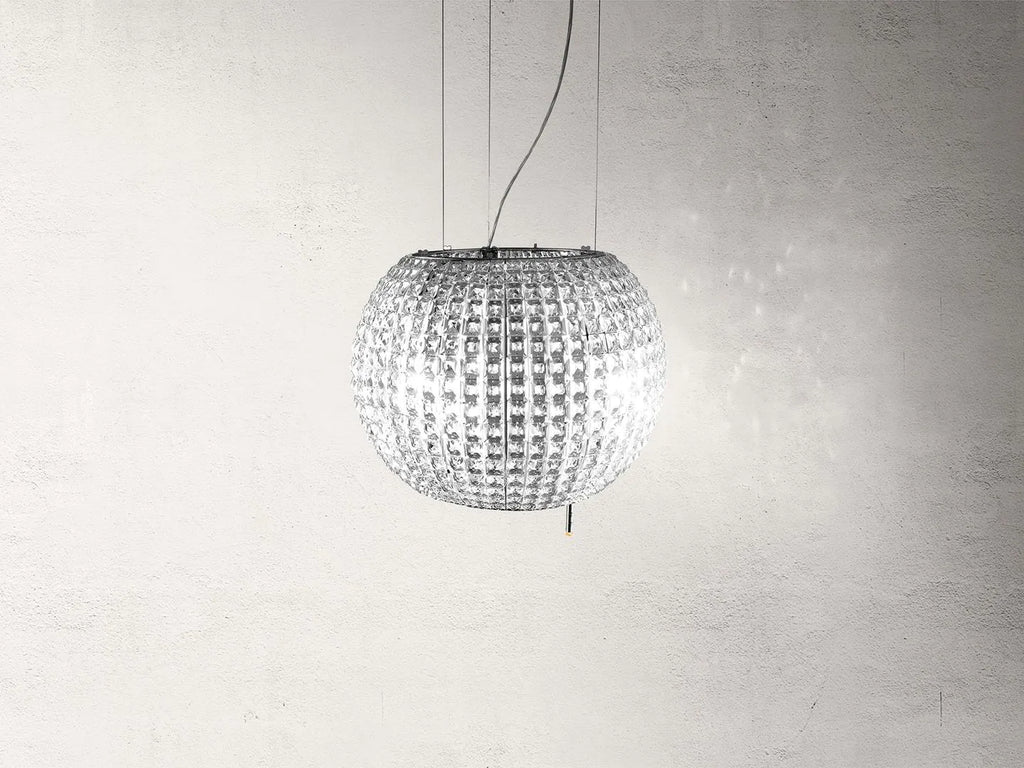

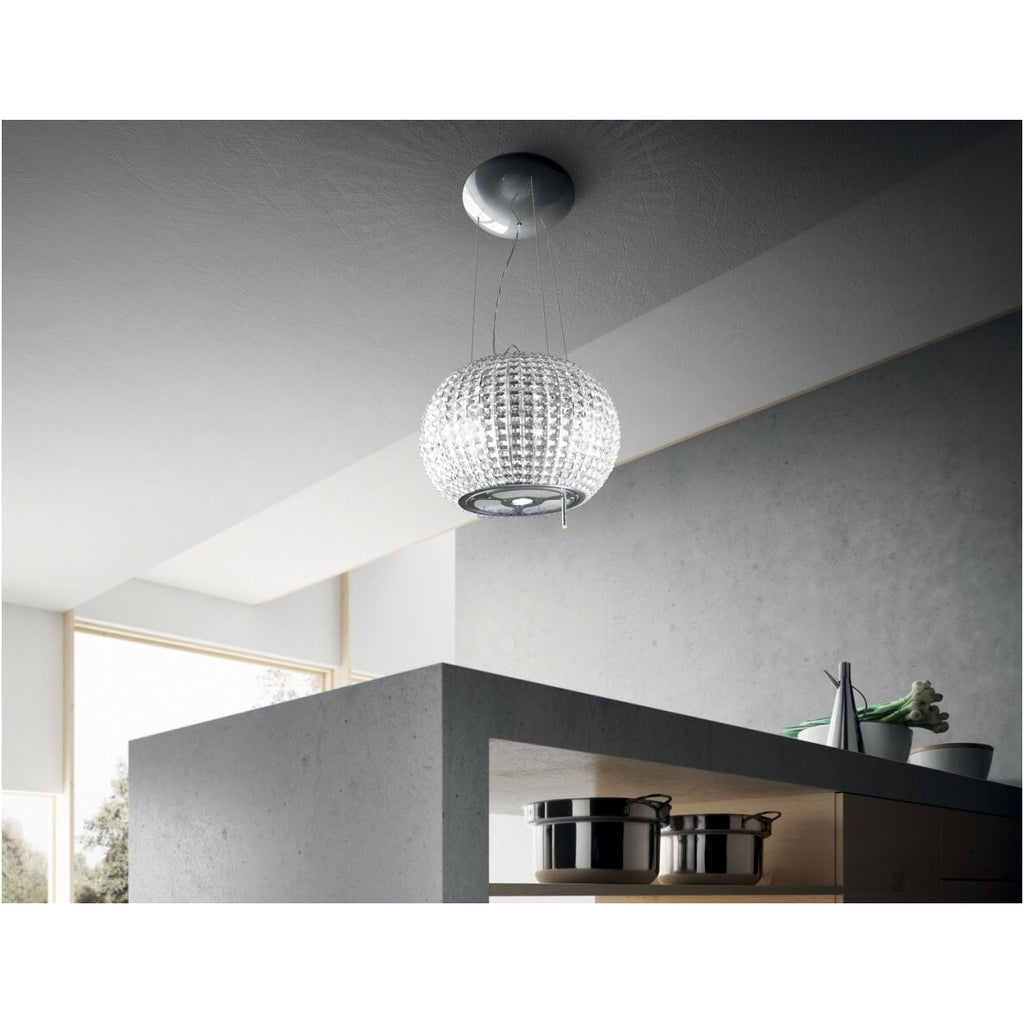

- Signature pendant design: stainless sphere with glass prism “star” finish — a sculptural lamp-hood for islands.
- Performance you can feel: min–max airflow ~200–550 m³/h (Boost), pressure ~400 Pa, with max noise ~66 dB(A).
- Lighting blend: task LED (≈5 W) plus ambient Halo ring (≈3×28 W) for drama and visibility.
- Clean air, less fuss: aluminium grease filter + Long Life carbon filter (regenerable) for recirculation.
- Smart comfort: Delay Switch-Off, Maintenance/Filter change alert.
What’s in the Box
- Elica STAR IX/F/47 pendant hood (body Ø 465 mm)
- Aluminium grease filter (pre-installed)
- Long Life carbon filter (regenerable)
- Suspension cables & ceiling mounting kit

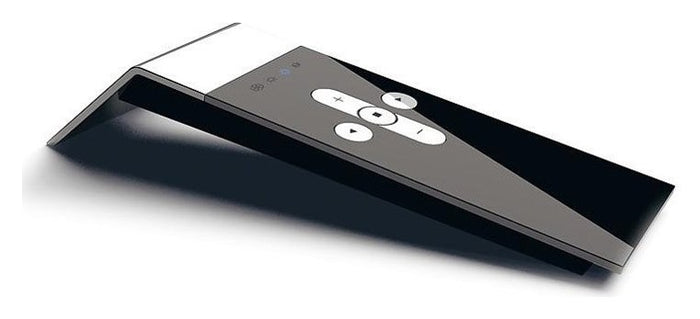

- Free wireless remote control — Remote 02183/1
- Installation & user documentation
Technical Specifications
| Model | Elica STAR IX/F/47 — Suspended Island Hood |
|---|---|
| Country of origin | Italy |
| Finish / Material | Stainless steel + Glass prisms |
| Colour | Stainless steel (Inox) with clear prisms |
| Installation | Recirculating (filtering) configuration |
| Extraction type | Filtering / Recirculating with Long Life carbon filter |
| Airflow | ~200–550 m³/h (min–Boost) |
| Pressure | ~400 Pa |
| Noise | ~38–58 dB(A); up to ~66 dB(A) at max |
| Controls | Magic Wand; 3 speeds + Boost (3S+B) |
| Lighting | LED ≈5 W (task) + Halo ≈3×28 W (ambient) |
| Total Absorption | ≈254 W; 220–240 V |
| Duct Outlet (if ducted) | Ø 150 mm (unit supplied for filtering) |
| Grease Filter | Aluminium (dishwasher-safe) |
| Odour Filter | Long Life carbon, regenerable (e.g., F00433/1) |

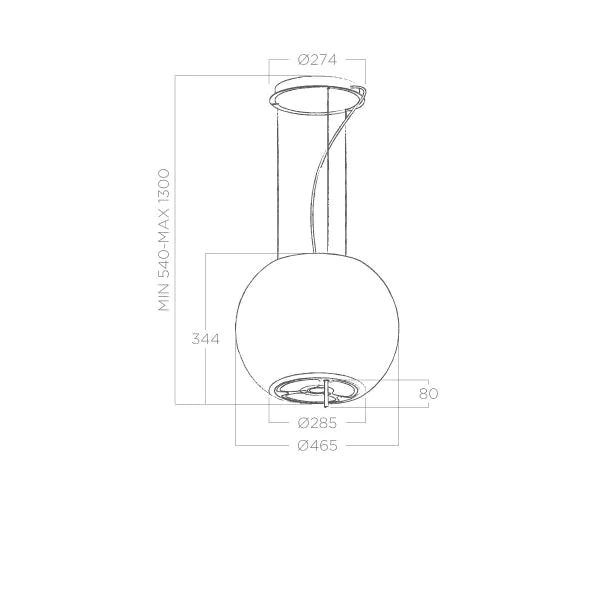

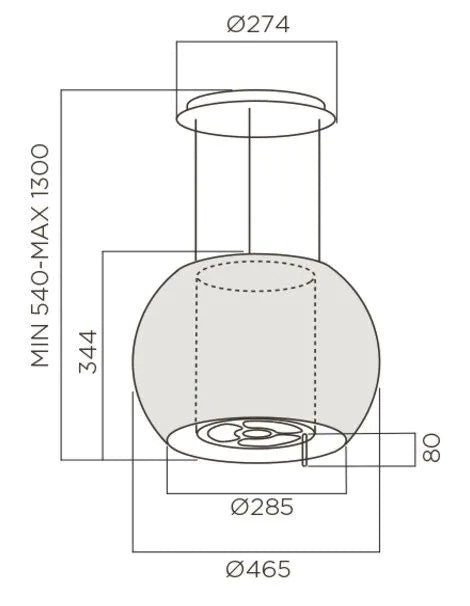

| Dimensions | Body Ø 465 mm × H 344 mm; cable drop adjustable ~540–1300 mm |
| Energy class | B |
| Included accessory | Wireless Remote 02183/1 (free) |
| EAN / GTIN-13 | 8020283020610 |
